  2. R313WA-Wireless 2-Gang Seat Occupancy Sensor
SGD Pricelist

R313WA-Wireless 2-Gang Seat Occupancy Sensor

  • Configuration Interface
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Transmit Power
  • Chipset
  • Sensors

SG$ 130.65 SG$ 130.65 130.6515 SGD

US$ 100.00

This combination does not exist.

Add to Cart

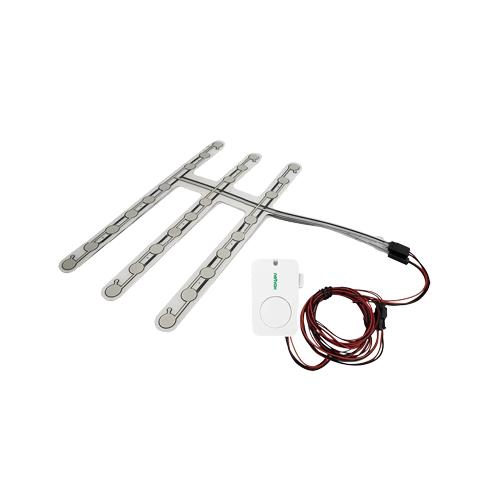

R313WA is a device that detects the presence of a seat and is compatible with the LoRaWAN protocol. If there is someone on the seat, R313WA will send a message to the gateway. When detecting the seat is empty, the device will send a message that restoring to normal status to the gateway.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

R313WA is a device that detects the presence of a seat and is compatible with the LoRaWAN protocol. If there is someone on the seat, R313WA will send a message to the gateway. When detecting the seat is empty, the device will send a message that restoring to normal status to the gateway.

    Features

    • •LoRaWAN™ Class A compatible
      •2*3.0V CR2450 button battery power supply

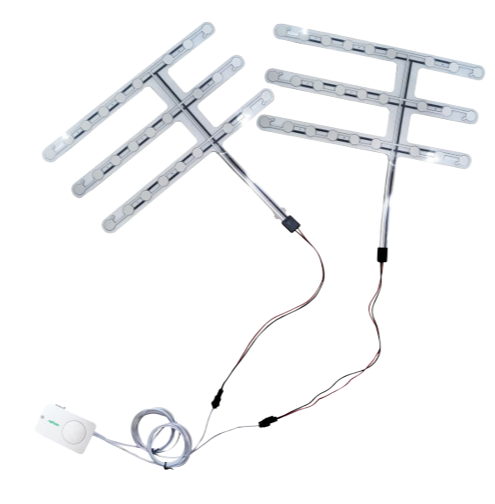

      •Two-gang seat occupancy sensor
      •Apply SX1276 wireless communication module
      •Frequency Hopping Spread Spectrum (FHSS)
      •Configuration parameters can be configured through a third-party software platform
      •Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
      •Low power consumption and long battery life Improved

              Specifications for R313WA-Wireless 2-Gang Seat Occupancy Sensor

              LoRaWAN
              Configuration Interface UART
              Uncategorized
              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class A
              Power type 2 pcs 3.0V CR2450 button batteries
              Sleep Power consumption 12uA
              Rx Sensitivity -136dBm
              Transmit Power 16dBm
              Chipset SX1276
              Sensors Seat Occupancy
