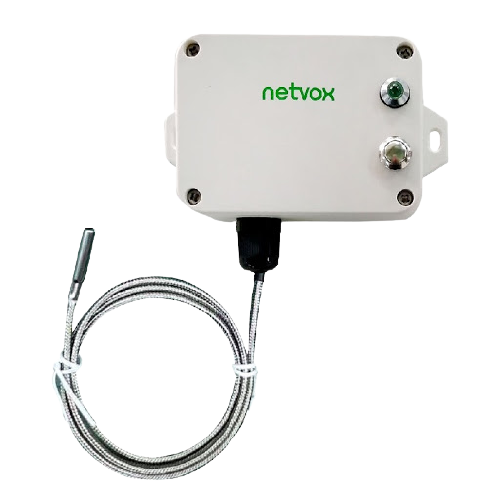

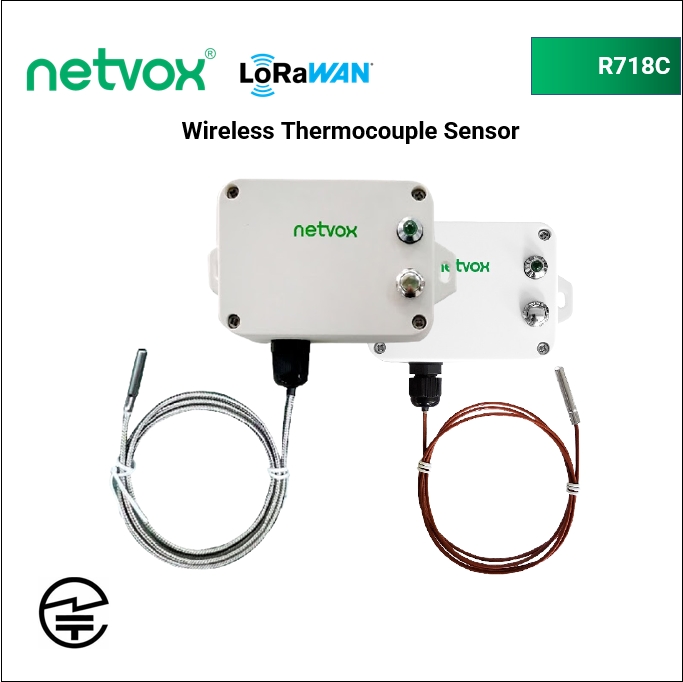

R718C Wireless Thermocouple Sensor

Sensor
Waterproof
Class
Frequency band
Power type
Sleep Power consumption
Rx Sensitivity
Sensor Measurement Range
TX Power
Chipset
Certification
Cable length

SG$ 221.65 SG$ 221.65 221.6518 SGD

US$ 165.00

This combination does not exist.

R718C series can be connected according to requirements: Type T thermocouple (R718CT) ; Type K thermocouple (R718CK), and it will display the collected data in the gateway

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard. Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life. For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.

FIND OUT MORE

Overview

R718CX can be connected according to requirements: type T (R718CT), type K thermocouple (R718CK), type N thermocouple (R718CN), type R thermocouple (R718CR) and display the collected data in the gateway. The communication is fully compatible with LoRaWAN protocol (class A).

Features

LoRaWAN™ Class A compatible
Frequency Hopping Spread Spectrum (FHSS)
Improved Interference Immunity
Improved Power Management For Longer Battery Life
Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
Battery Life: Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
Over-The-Air Updates
Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

Specifications for R718C Wireless Thermocouple Sensor

Sensor	Thermocouple Type K or Thermocouple Type T
Sensor Measurement Range	-40~125℃ +-0.5℃ or -40~375℃ +-1.5℃
Waterproof	IP67
Class	Class A
Frequency band	AS923
Power type	2 x ER14505
Sleep Power consumption	34uA
Rx Sensitivity	-136dBm
TX Power	16dBm
Chipset	SX1276
Certification	TELEC
Cable length	1m
