R718PA11 Wireless Water Level Sensor

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Sensors

SG$ 490.32 SG$ 490.32 490.32070000000004 SGD

US$ 365.00

This combination does not exist.

Add to Cart

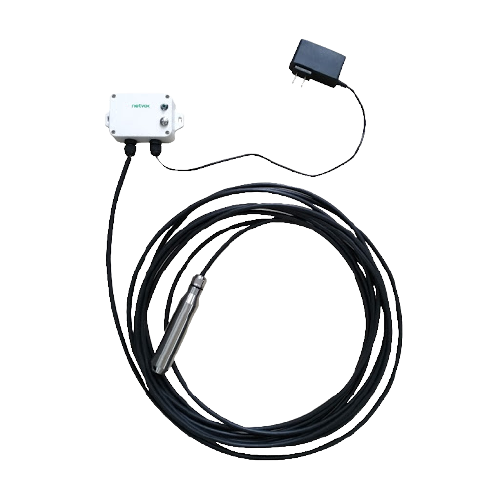

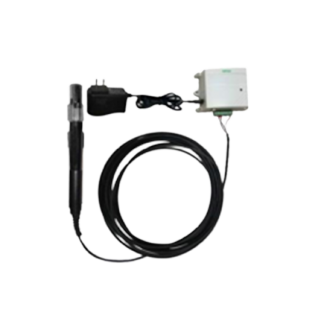

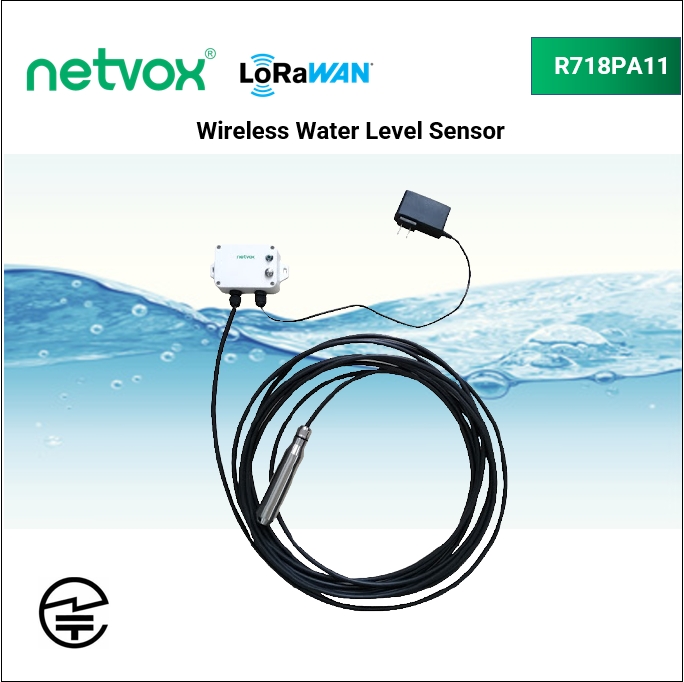

R718PA11 is a wireless communication device for detecting the liquid depth. R718PA11 can detect the depth of the liquid in the container.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

R718PA11 is a wireless communication device for detecting liquid depth. R718PA11 can detect the depth of the liquid in the container.


    Features

    • Adopt SX1276 wireless communication module
    • 12V DC power supply
    • Liquid level detection
    • Compatible with LoRaWAN™ Class A
    • Frequency hopping spread spectrum technology
    • Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
    • Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne

              Specifications for R718PA11 Wireless Water Level Sensor

              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class A
              Power type DC12V/1A
              Sleep Power consumption 60mA
              Rx Sensitivity -136dBm
              Sensor Measurement Range 10~50m
              TX Power 16dBm
              Chipset SX1276
              Sensors Pressure
