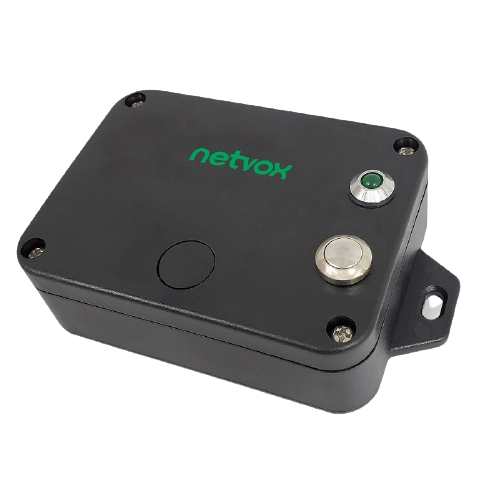

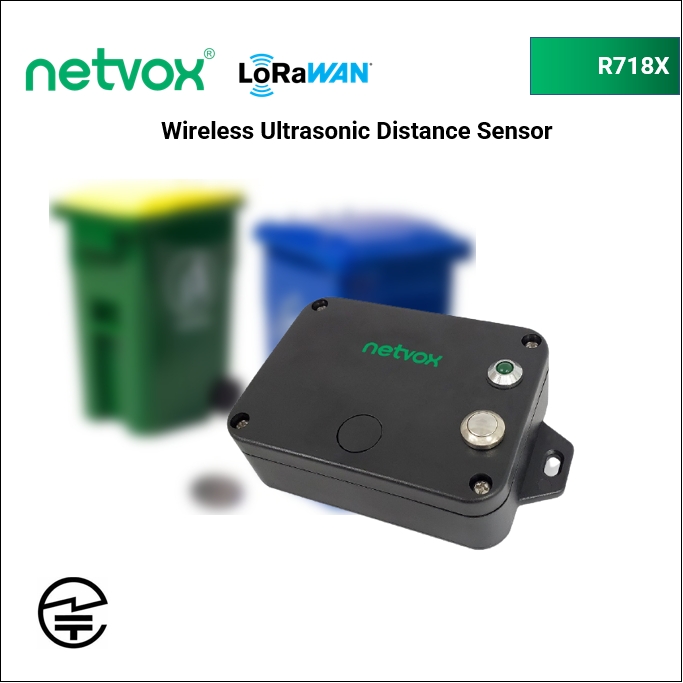

R718X Wireless Ultrasonic Distance Sensor

  • Sensor
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Certification
  • Cable length

SG$ 195.98 SG$ 195.98 195.9773 SGD

US$ 150.00

This combination does not exist.

Add to Cart

R718X is a wireless device that detect distance by ultrasonic ranging sensor. R718X also equips an NTC temperature sensor and will send alarm message while detecting abnormal temperature; it also equips with three-axis digital accelerometer sensor and would send out a warning while detects tilt, and the warning would be sent based on LoRa communication protocol.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

R718X is a wireless device that detects distance by the ultrasonic ranging sensor. R718X also equips an NTC temperature sensor and will send alarm messages while detecting abnormal temperature; it also equips with three-axis digital accelerometer sensor and would send out a warning while detecting tilt, and the warning would be sent based on LoRa communication protocol.

              Features

              Apply SX1276 wireless communication module
              2 sections ER14505 3.6V Lithium AA battery
              Tilt angle detection
              Temperature detection
              Distance detection
              The base is attached with a magnet that can be attached to a ferromagnetic material object
              Protection level: Main body IP65
              Compatible with LoRaWANTM Class A
              Frequency hopping spread spectrum technology
              Configuration parameters can be configured through third-party software platforms, data can be read and alarms can be set via SMS text and email (optional)
              Available third-party platform: Actility / ThingPark, TTN, MyDevices/Cayenne
              Low power consumption and long battery life

                        Specifications for R718X Wireless Ultrasonic Distance Sensor

                        Frequency band AS923 or AU915 or EU868 or US915
                        Sensor Ultrasonic + NTC Temperature + Tilt
                        Waterproof IP30
                        Class Class A
                        Power type 2 x ER14505
                        Sleep Power consumption 70uA
                        Rx Sensitivity -136dBm
                        Sensor Measurement Range 0.20~3.5m
                        TX Power 16dBm
                        Chipset SX1276
                        Certification TELEC
                        Cable length NA
