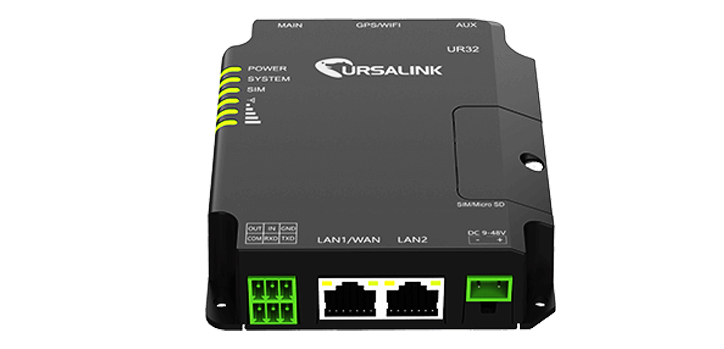

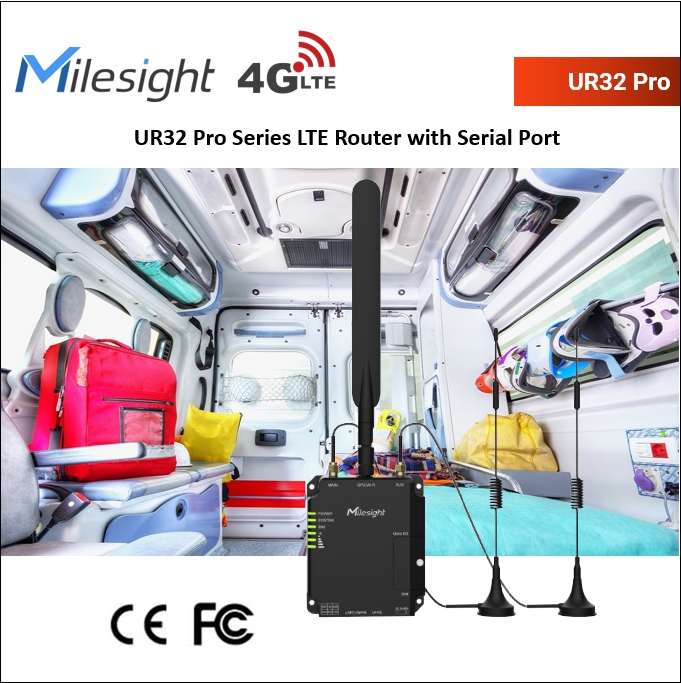

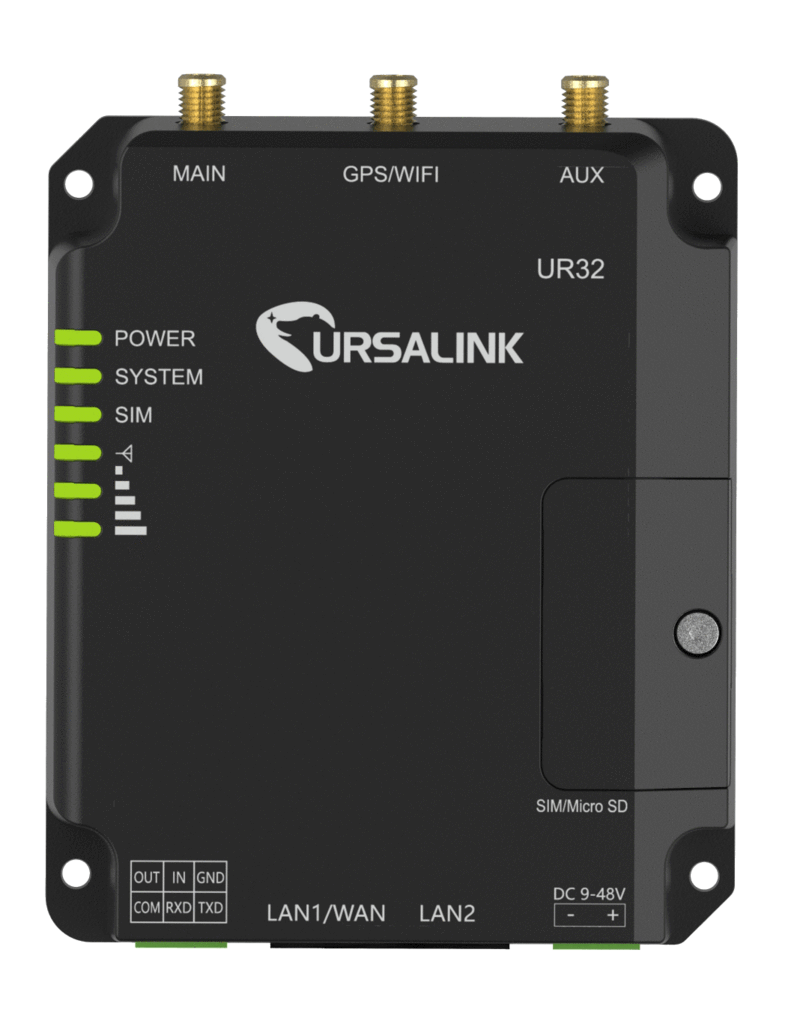

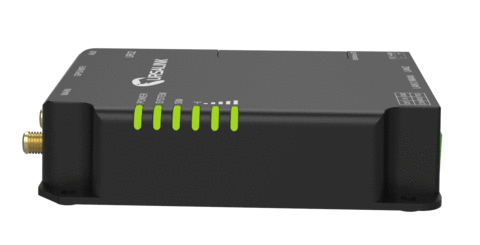

UR32 Pro Series LTE Router with Serial Port
The UR32 is specially designed to be low-cost and highly-efficient. The pocket-sized design allows it to easily fit into small cabinets or machines where space is limited. Supports all Australian 3G/4G bands including 700MHz
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
The UR32 is specially designed to be low-cost and highly-efficient. The pocket-sized design allows it to easily fit into small cabinets or machines where space is limited. Supports all Australian 3G/4G bands including 700MHz
Feature
1x WAN + 1x LAN OR 2x LAN
Equipped with 2 fast Ethernet ports and 1 RS232 interface, UR32 can connect with diverse field assets.
With a built-in LTE CAT4 modem, it supports dual SIM backup for robust, reliable cellular communication.
Compact and rugged design with a wide operating temperature range (-40°C to +70°C).
1 Digital Input and 1 Digital Output
Open VPN/IPsec/PPTP/L2TP/DMVPN/GRE
Specifications for UR32 Pro Series LTE Router with Serial Port
| LoRaWAN | |
|---|---|
| Remote Configure | VPN |
| Cellular | |
| SIM Slot | Dual SIM |
| Router | |
| CPU | 528 MHz, 32-bit ARM Cortex-A7 |
| Ehternet Ports | 2 × 10/100 Mbps |
| Memeory | |
| Flash | 128MB |
| RAM | 128MB DDR |
| Extended Storage | micro SD card up to 128 GB |
| Interface | |
| Serials Ports | RS232/RS485 |
| Input/Output | 1 × DI + 1 × DO |
| Wireless | |
| Wi-Fi Compliance | IEEE 802.11b/g/n |
| Power | |
| Power Input | 9-48 VDC |
| Power Output | 2 × 802.3af/at PoE PSE |
| Uncategorized | |
| Variant for LTE Router | Basic or with Wi-Fi or with GPS or with Wi-Fi + PoE |
| Operation Temperature range | -40°C to +70°C |
