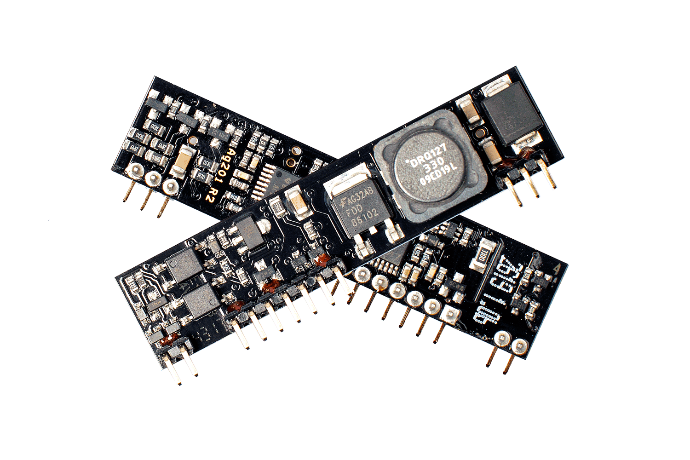

Ag201 Low Voltage LED driver with integrated DALI, SIL.
Low Voltage LED driver with integrated DALI, SIL.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

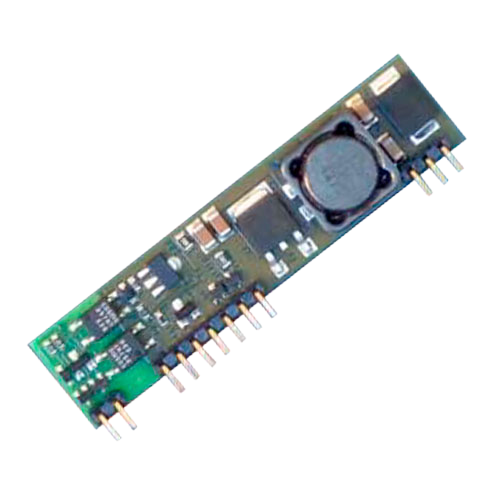

The Ag201 module is an extremely versatile, low voltage DC input, constant current LED driver module. Its’ wealth of features are all delivered in a tiny package, with a maximum of flexibility. Selectable constant current output drive allows connection to a huge variety of market leading LEDs. In addition, the module’s SEPIC, Buck-Boost DC-DC converter topology means the input voltage can be either higher or lower than the string (output) voltage, allowing for ease of design with a wide range of DC input voltages and LEDs. Flexible and powerful dimming control is built in with both fully isolated DALI and analogue (0.5V-10V) dimming inputs available.
Small SIL package
Selectable LED Current, 350mA, 500mA, 700mA &1000mA
Wide Input range 12V to 57V, SEPIC – Buck/Boost Technology
Wide input voltage range suitable for use with Silvertel’s range of PoE products.
Output Short-circuit and Over-Voltage protection
Very Long Life - No external electrolytic capacitors required
Input Over-voltage and Undervoltage protection
Wide LED String Voltage (2V-34V)
High efficiency DC/DC conversion
1-10V Analogue dimming control
Fully isolated (3.75KV) DALI Input
Minimal (low cost) external components required
