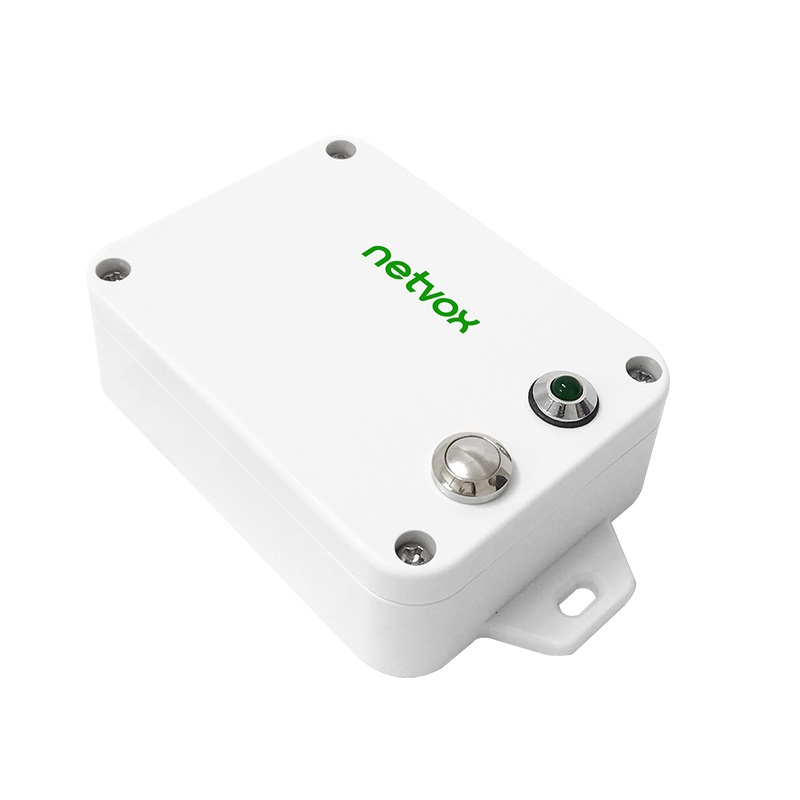

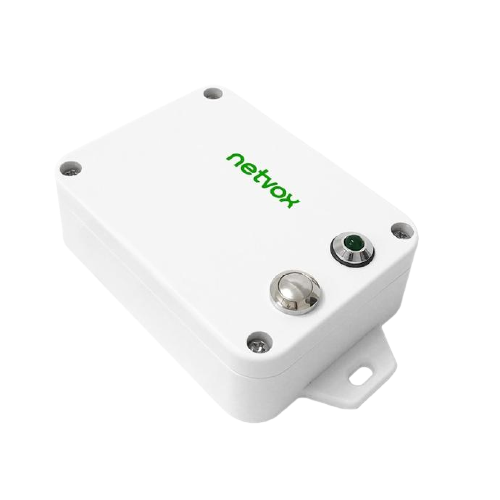

R718EB-Wireless Tilt Angle Sensor

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Certification
  • Sensors

SG$ 178.02 SG$ 178.02 178.02 SGD

US$ 129.00

This combination does not exist.

Add to Cart

R718EB has a built-in tilt angle detection sensor. When the device is tilted (compared with the reference angle), the tilt angle will be reported, and the detected data will be transmitted to other devices through the wireless network for display.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

R718EB has a built-in tilt angle detection sensor. When the device is tilted (compared with the reference angle), the tilt angle will be reported, and the detected data will be transmitted to other devices through the wireless network for display..



    Features

    • Apply SX1276 wireless communication module
    • 2 ER14505 battery (3.6V/section) in parallel power supply
    • Built-in tilt sensor
    • LoRaWAN™ Class A compatible
    • The base is attached with a magnet that can be attached to a ferromagnetic material object
    • Frequency Hopping Spread Spectrum (FHSS)
    • Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
    • Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • Improved power management for longer battery life



              Specifications for R718EB-Wireless Tilt Angle Sensor

              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP65
              Class Class A
              Power type 2 X 3.6V ER14505 AA
              Sleep Power consumption 24uA
              Rx Sensitivity -136dBm
              Sensor Measurement Range -40℃~55℃
              TX Power 16dBm
              Chipset SX1276
              Certification FCC/CE/TELEC/LORAWAN
              Sensors Temperature/Humidity
