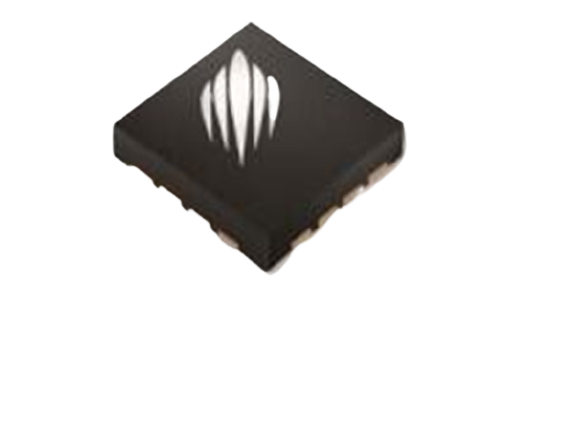

PE4245 SPDT low insertion loss RF switch

  • Frequency
  • RF Switch
  • IIP3 (dBm)
  • P1/0.1dB (dBm)
  • Package
  • Insertion Loss (dB)
  • Isolation (dB)

SG$ 2.21 SG$ 2.21 2.2098 SGD

US$ 1.63

This combination does not exist.

Add to Cart

SPDT, Low IL, Reflective, 50Ω RF Switch

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare. From headquarters in San Diego and offices around the world, pSemi’s team explores new ways to make electronics for the connected world smaller, thinner, faster and better.

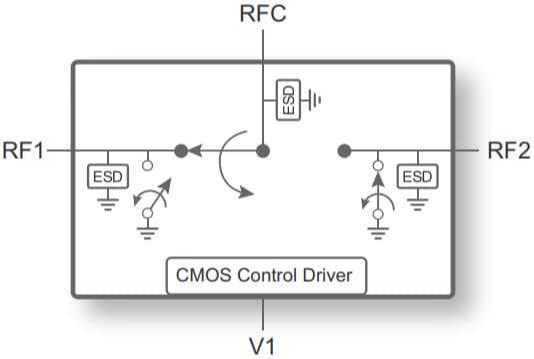

The PE4245 RF Switch is designed to cover a broad range of applications from near DC to 4000 MHz. This switch integrates onboard CMOS control logic with a low voltage CMOS compatible control input. Using a 3V nominal power supply, a 1 dB compression point of +27 dBm can be achieved. The PE4245 also exhibits excellent isolation of better than 42 dB at 1000 MHz and is offered in a small 3 × 3 mm DFN package.


      Single 3.0 V Power Supply
      Low insertion loss
      High isolation
      Typical 1 dB compression of +27 dBm
      Single-pin CMOS logic control

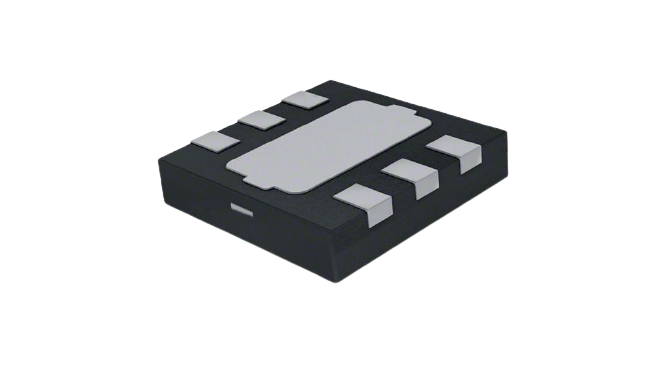

      Packaging: 6-lead 3 × 3 DFN

Specifications for PE4245 SPDT low insertion loss RF switch

Frequency DC~4000MHz
RF Radio
RF Switch SPDT
IIP3 (dBm) 45
P1/0.1dB (dBm) 27.0/-
Package 6L DFN
Insertion Loss (dB) 0.6~0.7
Isolation (dB) 32~42
