PE4259 SPDT High Power UltraCMOS® 10 MHz–3.0 GHz RF Switch

PE4259 SPDT High Power UltraCMOS® 10 MHz–3.0 GHz RF Switch

SG$ 0.85 SG$ 0.85 0.8466 SGD

US$ 0.65

This combination does not exist.

Add to Cart

SPDT, Low IL, Reflective, 50Ω RF Switch

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Psemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

FIND OUT MORE

Overview

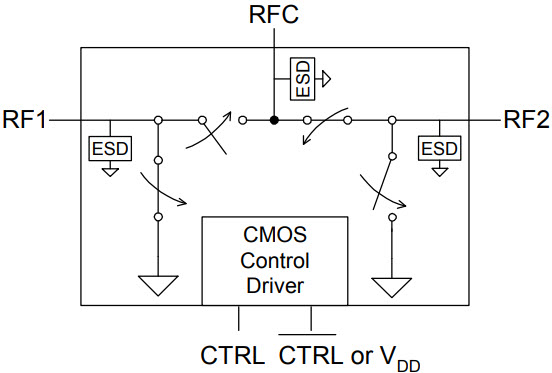

The PE4259 UltraCMOS® RF switch is designed to cover a broad range of applications from 10 MHz through 3000 MHz. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface and can be controlled using either single-pin or complementary control inputs. Using a nominal 3V power supply voltage, a typical input 1 dB compression point of +33.5 dBm can be achieved

Features

Single-pin or complementary CMOS logic control inputs

Low insertion loss

Isolation of 30 dB @ 1000 MHz

High ESD tolerance of 2 kV HBM

Typical input 1 dB compression point of +33.5 dBm

1.8V minimum power supply voltage

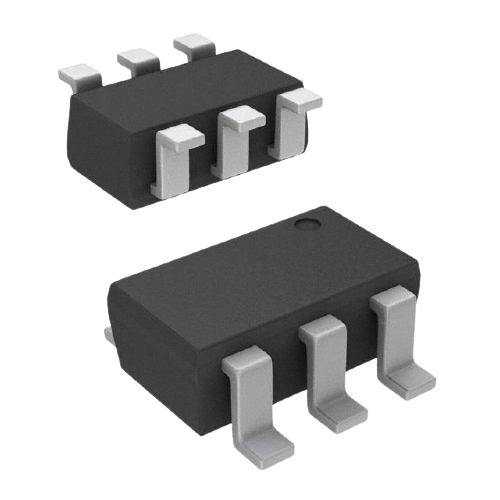

Packaging: Ultra-small 6-lead SC-70
