  2. PE4270 UltraCMOS® SPST CATV Switch
SGD Pricelist

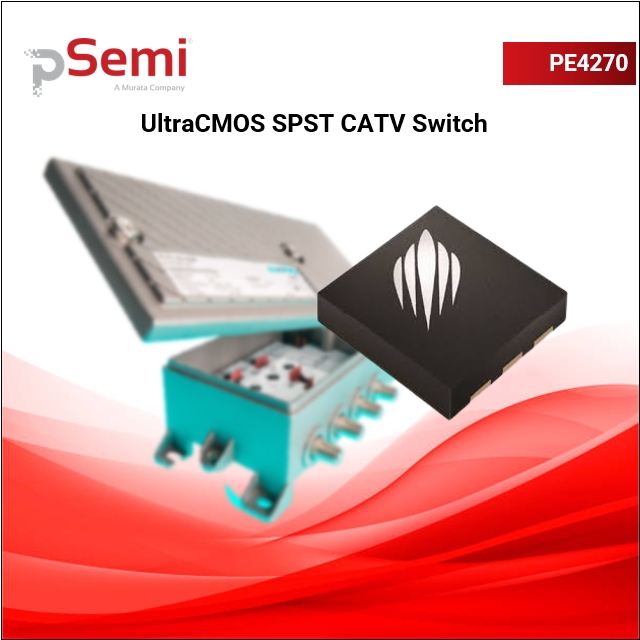

PE4270 UltraCMOS® SPST CATV Switch

  • Frequency
  • RF Switch
  • IIP3 (dBm)
  • P1/0.1dB (dBm)
  • Package
  • Insertion Loss (dB)
  • Isolation (dB)

SG$ 2.00 SG$ 2.00 1.9955 SGD

US$ 1.48

This combination does not exist.

Add to Cart

SPST, CATV, High Iso, Absorptive RF Switch

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

pSemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare. From headquarters in San Diego and offices around the world, pSemi’s team explores new ways to make electronics for the connected world smaller, thinner, faster and better.


FIND OUT MORE

Overview

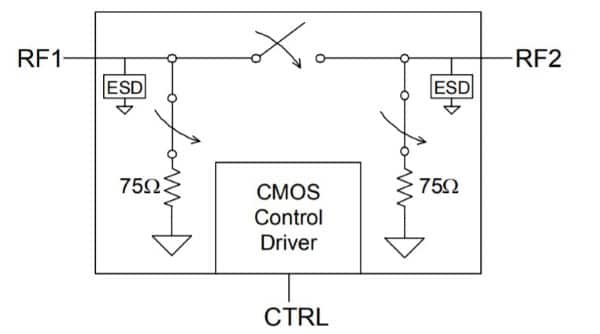

The PE4270 is a high-isolation switch designed for CATV applications, covering a broad frequency range from 1 to 3000 MHz. This single-supply SPST switch offers a single-pin CMOS control interface with industry-leading CTB performance. It also provides low insertion loss, high isolation, and extremely low bias requirements while operating on a single 3V supply. In a typical CATV application, the PE4270 provides for a cost-effective and manufacturable solution vs. mechanical relays.

Features

      Integrated 0.25-watt terminations
      CTB performance of 90 dBc
      High isolation: 90 dB at 5 MHz, 63 dB at 1000 MHz
      Low insertion loss: 0.5 dB at 50 MHz, 0.70 dB at 1000 MHz
      High input IP2: >80 dBm
      CMOS/TTL single-pin control
      Single +3-volt supply operation
      Extremely low bias: 8 µA @ 3V
      Packaging: 6-lead DFN

Specifications for PE4270 UltraCMOS® SPST CATV Switch

Antenna
Frequency 1~3000MHz
RF Radio
RF Switch SPST
IIP3 (dBm) 50
P1/0.1dB (dBm) 30.0/-
Uncategorized
Package 6L DFN
Insertion Loss (dB) 0.5~0.7
Isolation (dB) 63~90
