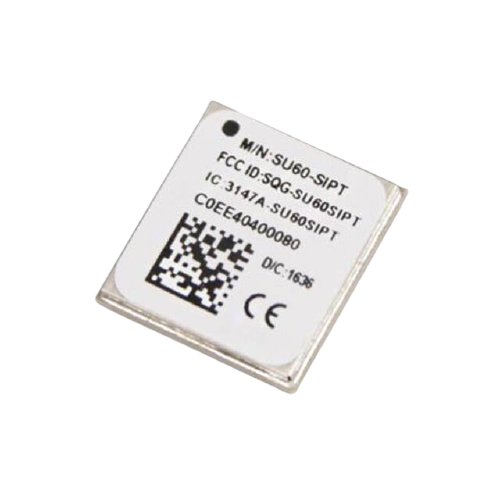

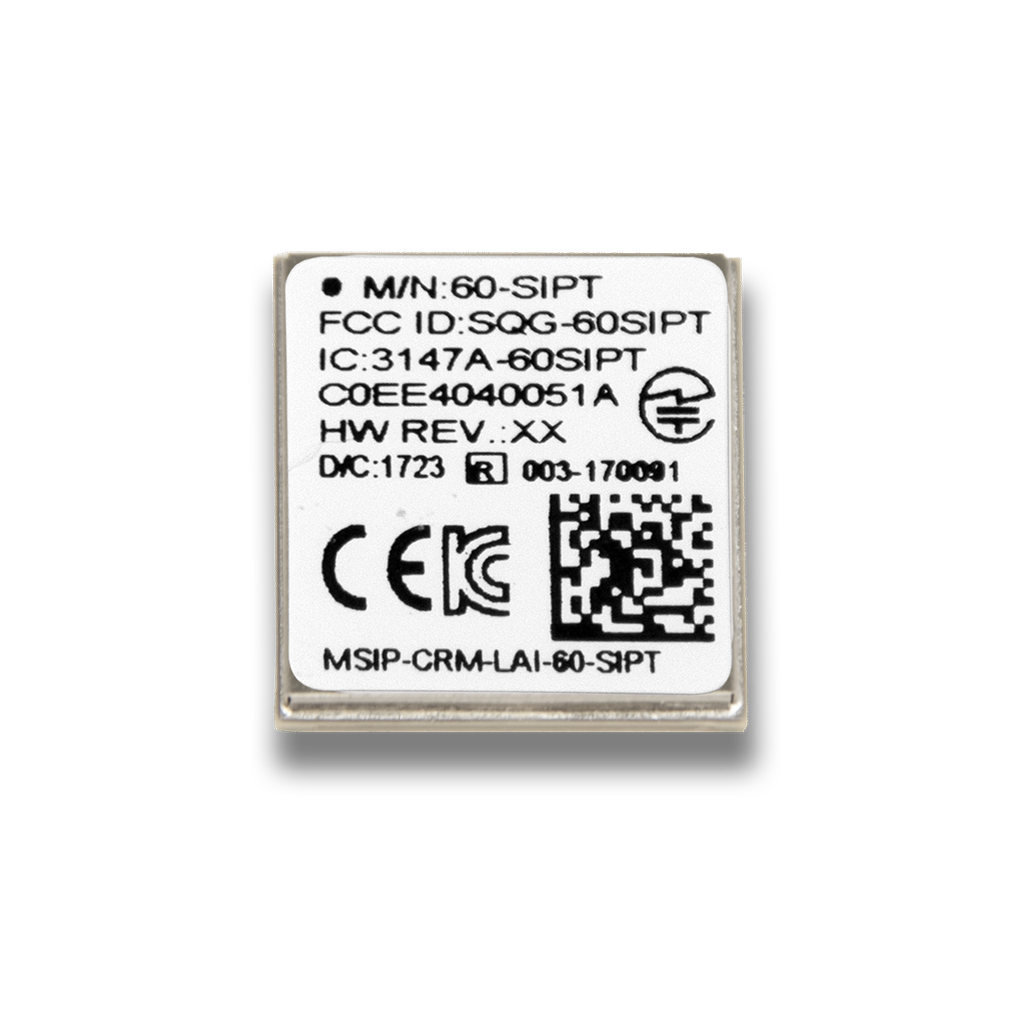

60-SIPT Bluetooth and WiFi Module
60 Series, Summit SIPT
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Powered by the powerful NXP 88W8997 chipset, Laird Connectivity’s 60-SIPT WiFi + Bluetooth module achieve the best possible connectivity and performance in any RF environment. With industry-leading software, broad OS support, and multiple form factors, Laird Connectivity’s 60 Series offers flexibility to meet your needs. The 60 Series introduces 802.11ac, 2x2 MU-MIMO, and Bluetooth 5.1 on one low-power module, delivering future-ready cutting-edge technology for your product. Building on the security and robustness inherited from Laird Connectivity’s expertise in its 40, 45, and 50 Series modules mean ultra-high data rates, improved performance, and the most reliable wireless in crucial applications such as medical and industrial.
The 60-SIPT series device supports IEEE 802.11 ac (wave 2) 2X2 receive multi-user MIMO (MU-MIMO) spatial stream multiplexing with data rates up to MCS9 (866.7 Mbps). Bluetooth 5.1. Internal Wi-Fi and BT coexistence scheme provide optimized throughput when Wi-Fi and BT working simultaneously. The device’s low power consumption radio architecture and
power manage unit (PMU) proprietary power save technologies allow for extended battery life.
In addition, its dual 802.11 and Bluetooth radio includes full digital MAC and baseband engines that handle all 802.11
CCK/OFDM® 2.4/5GHz, and Bluetooth basic rate and EDR baseband and protocol processing.
Dual embedded low-power CPU cores minimize host loading and maximize flexibility to support customer-specific use cases.
The 60-SIPT series SiP modules include two product SKUs which is have different supported software features
Specifications for 60-SIPT Bluetooth and WiFi Module
|Software verion||Enterprise or Professional|
