PD Module, 30W, IEEE802.3at compliant, 12V

Role
Compliance
Output Voltage
Temperature Range
Power module package
Build in Bridge
Power isolution
Protection

SG$ 17.19 SG$ 17.19 17.1906 SGD

US$ 12.75

This combination does not exist.

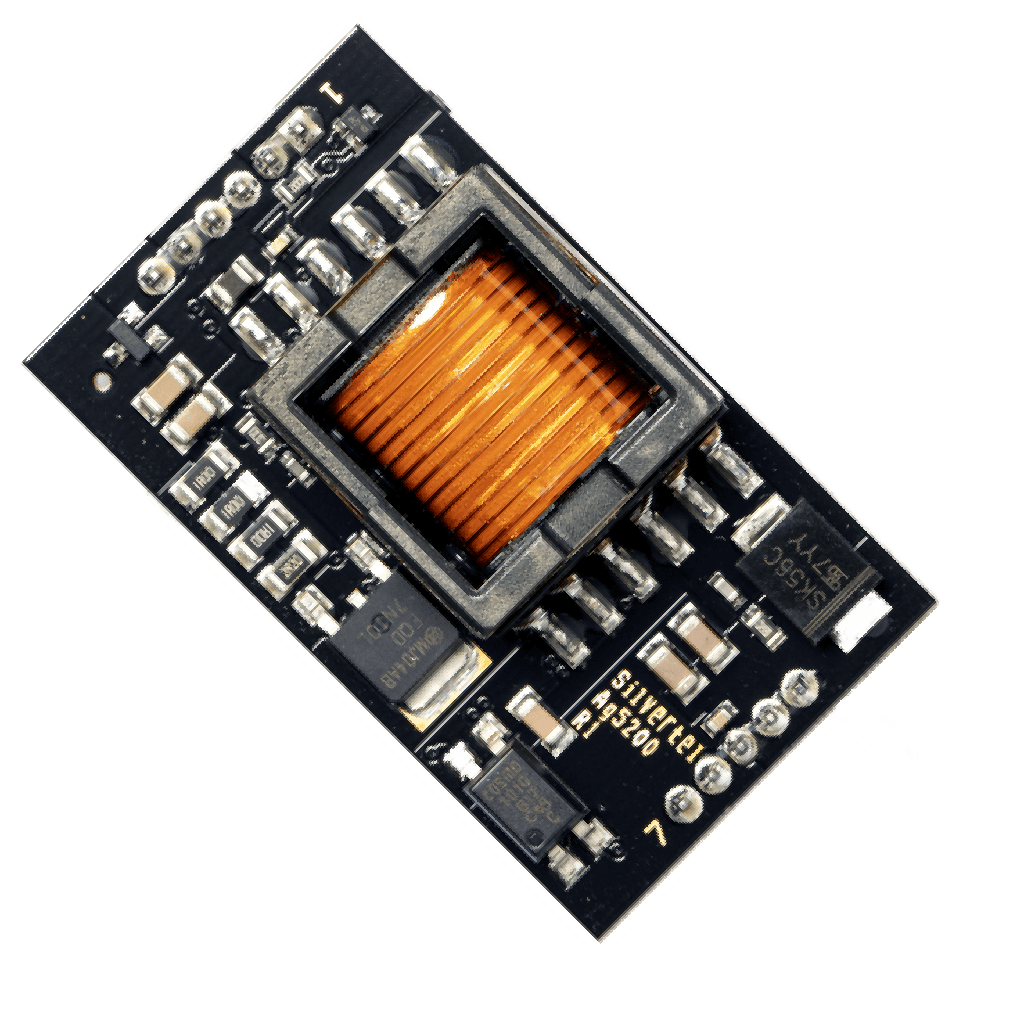

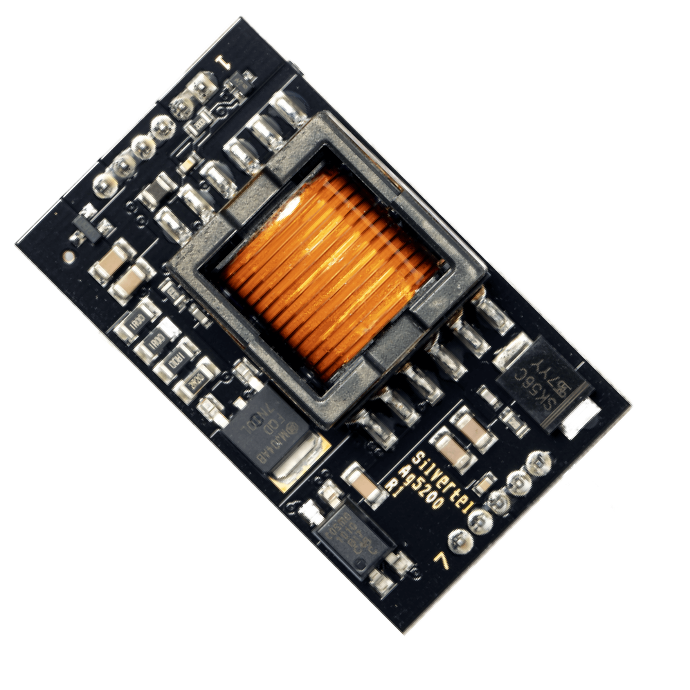

The Ag5200 is a low cost PoE+ module that can deliver up to 30 Watts of output power. It has a small DIL format package size that is ideal for applications such as IP Telephones, WiMAX access points, PTZ cameras and remote computer terminals.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality.

FIND OUT MORE

Overview

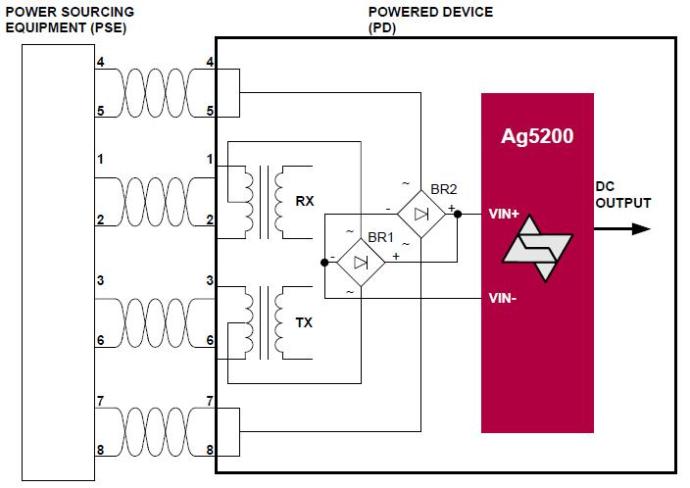

The Ag5200 is a low-cost PoE+ module that can deliver up to 30 Watts of output power. It has a small DIL format package size that is ideal for applications such as IP Telephones, WiMAX access points, PTZ cameras and remote computer terminals. The input Signature complies with both the IEEE802.3af and IEEE802.3at specifications and it is designed to meet the safety isolation requirements of IEEE802.3at.

Features

POE + module compliant with IEEE 802.3at & af
DIL - 51mm(L)x30mm(W)x16mm(H)
12V output
Adjustable output voltage
Input voltage range 37V to 57V
Overload, thermal, and short-circuit protection
Isolated high-efficiency DC/DC converter
Minimal low cost external components required
Low cost & simple integration

Evaluation Kit

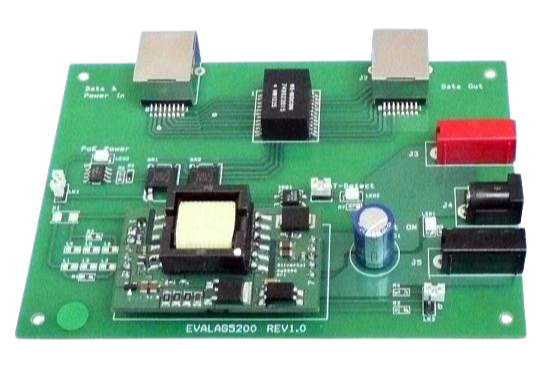

EvalAg5200 is intended for testing and evaluation of the Ag5200 POE+ PD module only. This evaluation board will work with Power Sourcing Equipment (PSE) that supplies power over the spare pair or data pairs. Please use the links provided to order boards or download the user manual.

Specifications for PD Module, 30W, IEEE802.3at compliant, 12V

Role	PD
Compliance	IEEE 802.3at 30W
Output Voltage	12V
Temperature Range	Normal
Power module package	SIL
Build in Bridge	No
Power isolution	1500Vdc
Protection	Thermal, Overload and short-circuit
