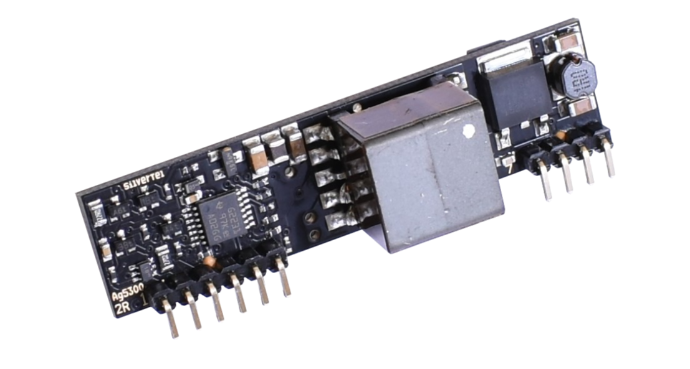

Ag5300 PD Module 30W IEEE802.3at SIL
The Ag5300 series are low cost PoE+ modules, in a Single-In-Line (SIL) package, that can deliver up to 30 Watts of output power. Options for 12V DC (Ag5300) or 24V DC output (Ag5324) are available.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
The Ag5300 series are low-cost PoE+ modules, in a Single-In-Line (SIL) package, that can deliver up to 30 Watts of output power. Options for 12V DC (Ag5300), 5V DC output (Ag5305) or 24V DC output (Ag5324) are available. The module signature complies with both the IEEE802.3af and IEEE802.3at specifications and it is designed to meet the safety isolation requirements of IEEE802.3at. The exceptionally small footprint and package size, make it ideal for space-restricted applications such as IP Video Telephones, WiMAX access points, PTZ cameras and remote computer terminals. Ag5324 is well suited to building automation and industrial control applications requiring 24V with the ability of Ag5324 to operate over the industrial temperature range from -40 to +85C further extending its’ versatility.
Smallest ‘at’ solution in the world
SIL - 57mm(L)x18mm(W)x14mm(H)
5V, 12V & 24V output options
Adjustable output voltage
Input voltage range 37V to 57V
Overload, thermal and short-circuit protection
Isolated high-efficiency DC/DC converter
Minimal low-cost external components required
Low cost & simple integration
Specifications for Ag5300 PD Module 30W IEEE802.3at SIL
|Output Voltage||12V or 24V or 5V|
|Compliance||IEEE 802.3at 30W|
|Build in Bridge||No|
|Protection||Overcurrent & short circuit|
