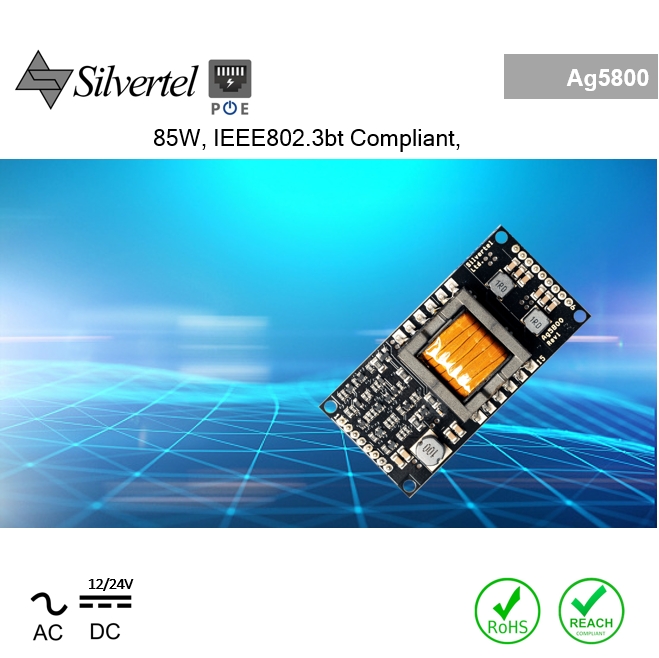

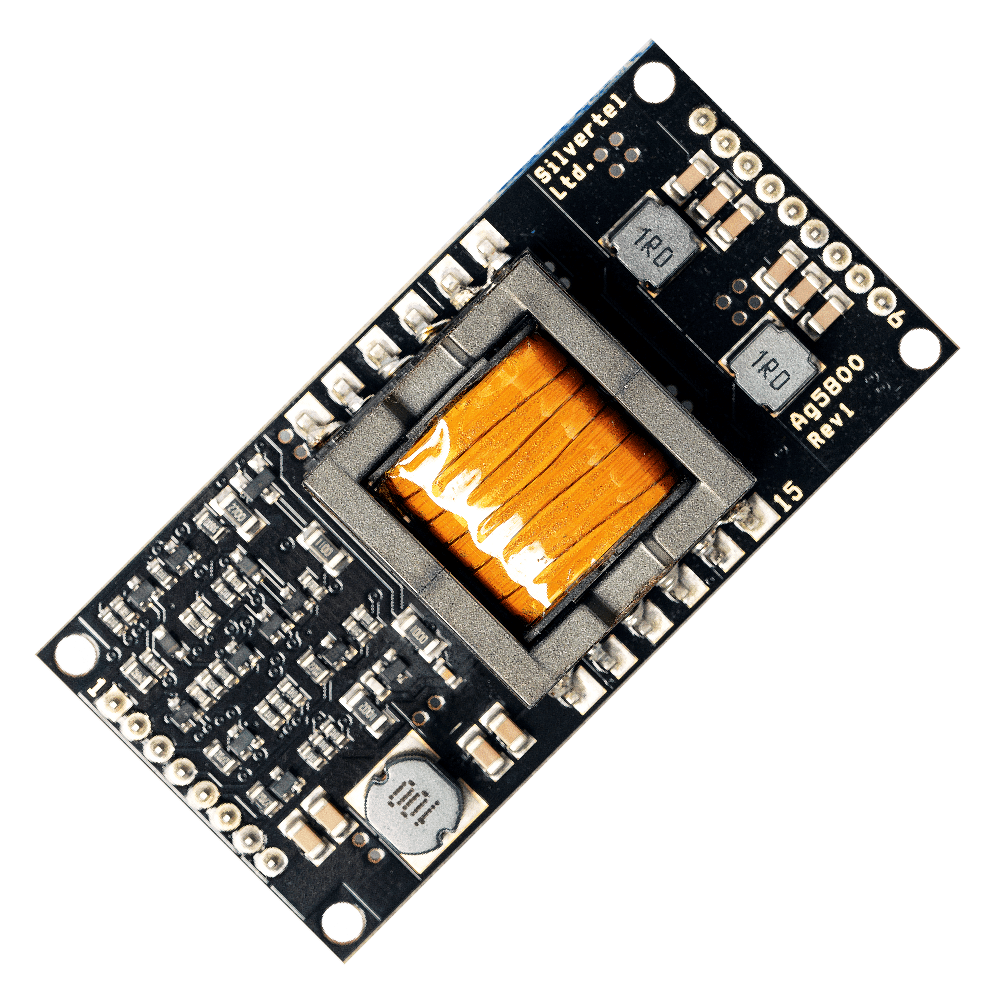

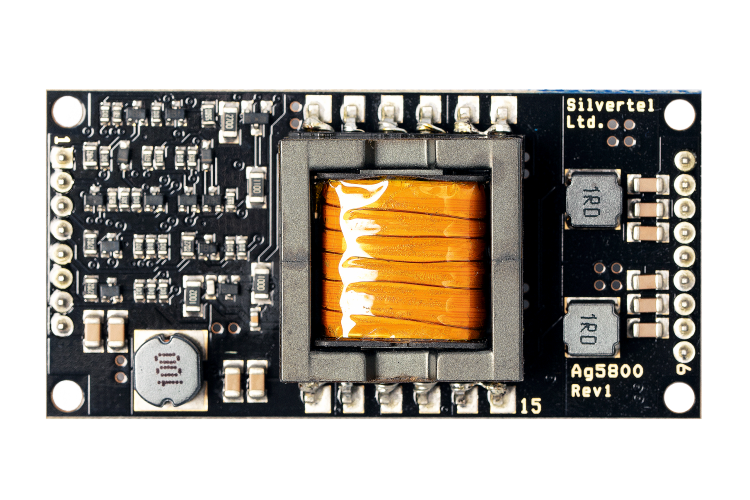

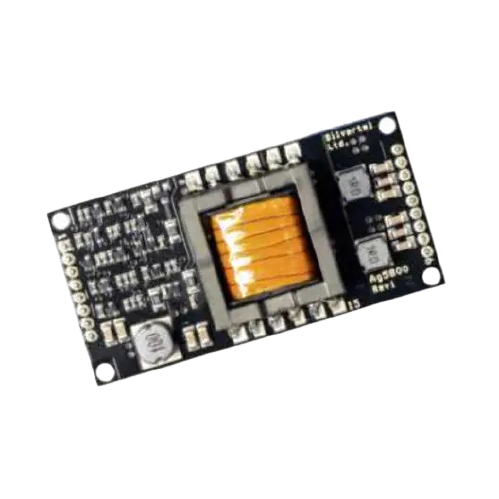

PD Module, 85W, IEEE802.3bt Compliant, 12V/24V
The Ag5800 is IEEE802.3bt Draft compliant PD module is designed for high power POE applications. Depending on cable length it can output up to 85W when supplied from an IEEE802.3bt PSE. This total solution includes 1.5kV of isolation, PoE signature and an integral DC to DC converter for 12 or 24V output
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
The Ag5800 is an IEEE802.3bt compliant PD module is designed for high-power POE applications. Depending on cable length it can output up to 85W when supplied from an IEEE802.3bt PSE. This total solution includes 1.5kV of isolation, PoE signature and an integral DC to DC converter for 12 or 24V output.
Features
Smallest 85W ‘bt’ solution in the world
DIL - 70mm(L) x 35mm(W) x 17mm(H)
Power received on all 4 pairs - Type 4, Class 8
Overload, thermal & short-circuit protection
Very low power standby mode
Wide input voltage range (37-57V)
12V or 24 V output
89% efficient isolated DC/DC converter
Minimal low-cost external components required
Simple integration
Applications
Specifications for PD Module, 85W, IEEE802.3bt Compliant, 12V/24V
| Output Voltage | 12V/24V |
