PSE Module, 1-Channel, IEEE802.3af & at compliant
The Ag6100 is a single channel, small package SIL PSE module, designed to inject power into conventional twisted pair Category 5 Ethernet cables. Ag6100S modules are compatible with IEEE 802.3af POE and 802.3at PoE+ devices and PD modules (e.g. Ag9800 or Ag5300).
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview

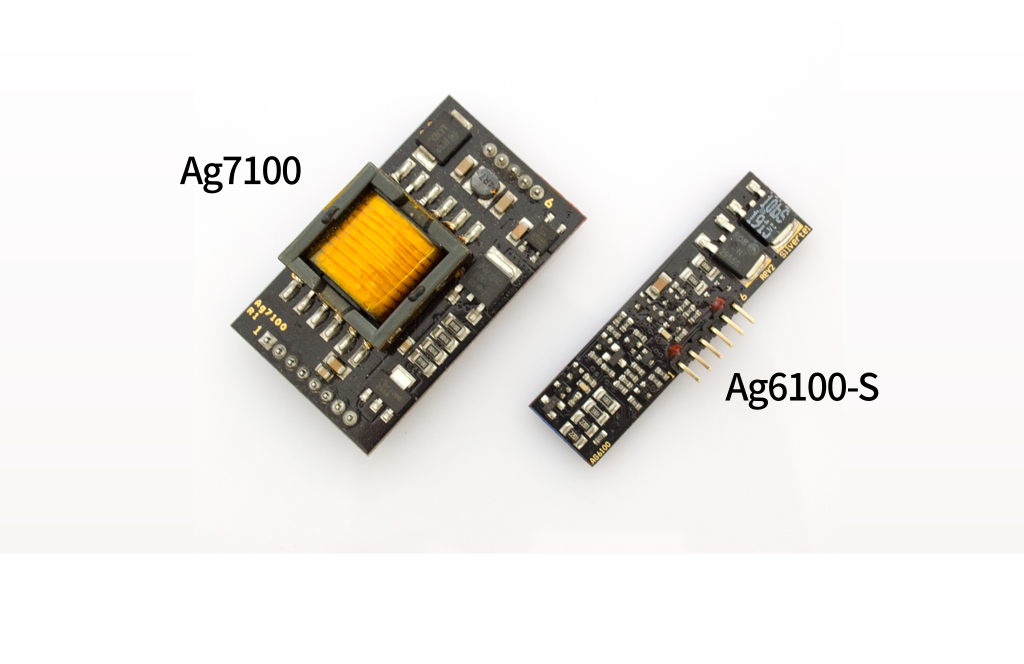

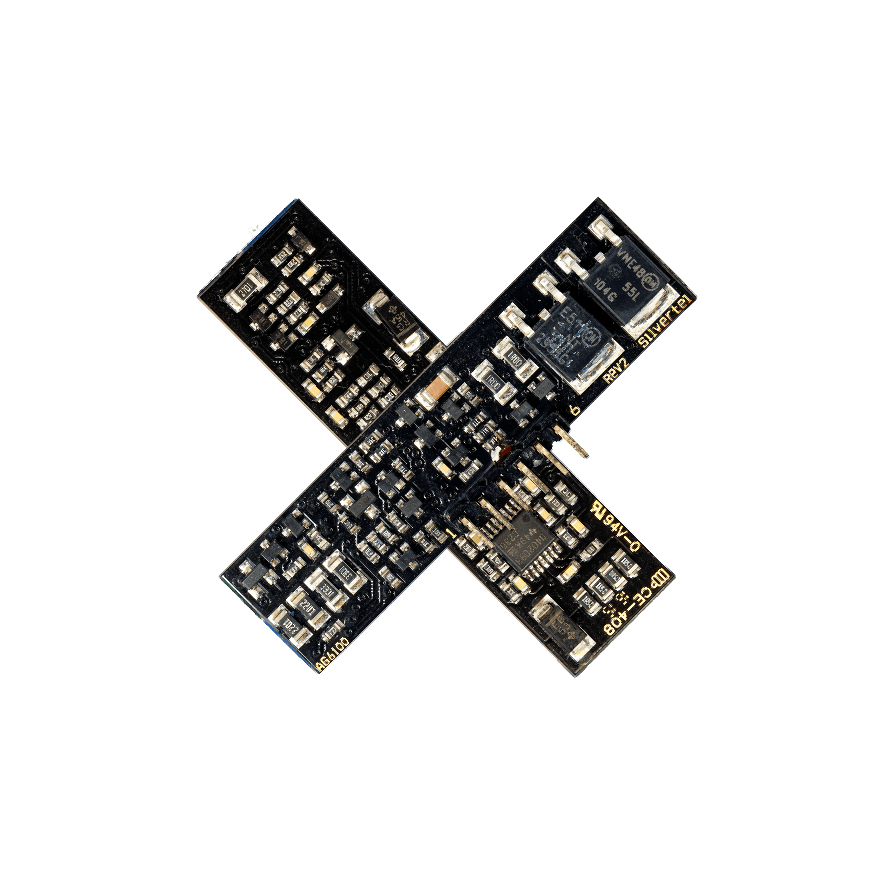

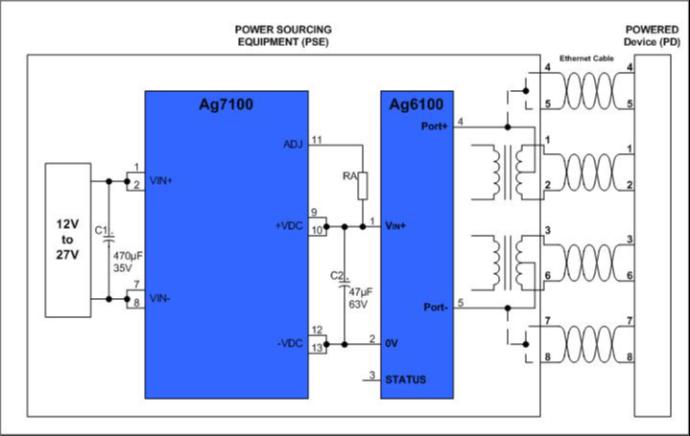

The Ag6100 is a single channel, small package SIL PSE module, designed to inject power into conventional twisted-pair Category 5 Ethernet cables. Ag6100S modules are compatible with IEEE 802.3af POE and 802.3at PoE+ devices and PD modules (e.g. Ag9800 or Ag5300). Ag6110 is compatible with POE Ultra devices and modules (e.g. Ag5500). Ag6100S will operate as standard across the Industrial Temperature range (-40C to +85C). Ag6100 requires a 48 – 57V DC input, frequently provided by the Ag7100 DC-DC converter module.
Features
4 Channel
IEEE802.3af & at compatible
Small SIL Footprint- SIL - 50mm(L)x8mm(W)x14mm(H)
Over Current & Short Circuit Protection
Signature & Class recognition
39W per channel
Hardware and Software modes
Industrial Temperature
Simple integration
Evaluation Kit

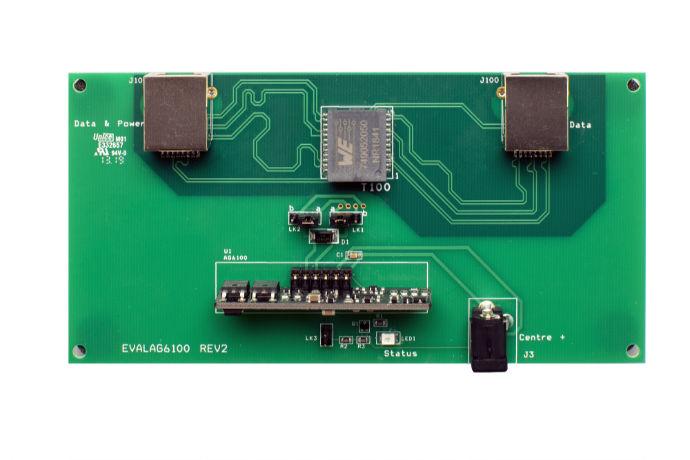

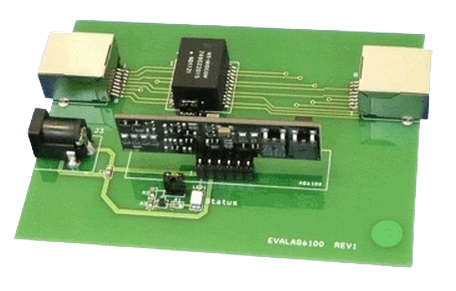

Ag6100 and Ag6110 Evaluation Boards
This is Silvertels standard IEEE802.3af, IEEE802.3at and POE Ultra PSE module evaluation board, for testing and evaluation of Silvertel Single Channel PSE modules. It is suitable for use at 10M/100M/1G and 10G Ethernet (HDBaseT compatible) rates, with the following products – Ag6100S and Ag6110. It is designed to work with Powered Devices (PDs) (e.g. Ag9700 or Ag5200) that extract power from either the spare pair and or the data pair. Please use the link provided to order and request specific evaluation boards or download the User Manual.
Specifications for PSE Module, 1-Channel, IEEE802.3af & at compliant
| Role | PSE |
| Compliance | IEEE802.3af/at |
| Output Voltage | 48V/57V |
| Temperature Range | Industrial Temperature with Temp protection |
| Power module package | SIL |
| Channel | Single Channel |
| Protection | Overcurrent & short circuit |
| Output Power | 39W |
