PSE Module, 1-Channel, IEEE802.3af, at & bt compliant

  • Role
  • Compliance
  • Output Voltage
  • Temperature Range
  • Power module package
  • Channel
  • Protection
  • Output Power

SG$ 10.68 SG$ 10.68 10.6806 SGD

US$ 8.20

This combination does not exist.

Add to Cart

PSE Module, 1-Channel, IEEE802.3af, at & bt compliant, SIL.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).


FIND OUT MORE

Overview

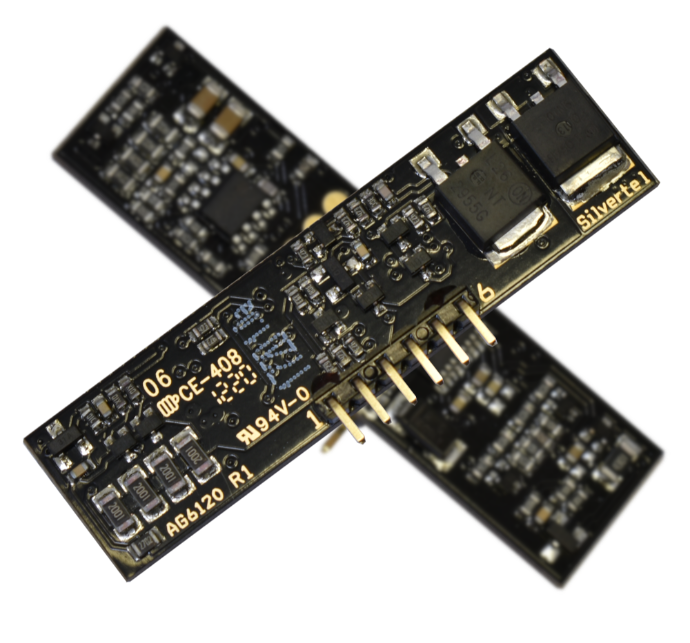

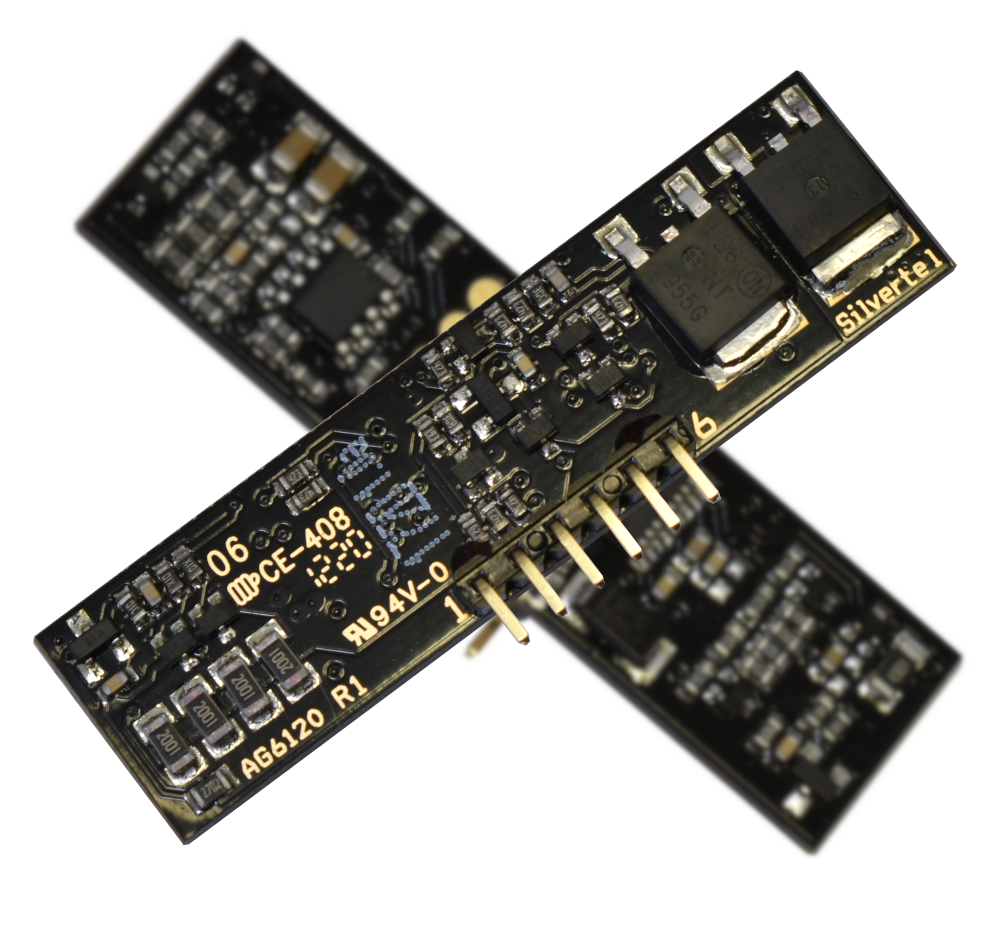

The Ag6120 is a single-channel, small package SIL PSE module, designed to inject power into conventional twisted pair Category 5 Ethernet cables. Ag6120S modules are compatible with IEEE 802.3af POE, 802.3at PoE+ and 802.3bt devices and PD modules (e.g. Ag9800, Ag5300 or Ag5810).

Features

  • IEEE802.3af, at & BT compatible

  • Small SIL Footprint-53mm(L)x 7mm(W)x 14mm(H)

  • Over Current & Short Circuit Protection

  • Signature & Class recognition

  • Programmable 19W - 75W Output Supply limit

  • IEEE802.3bt reduced MPS for lower power standby

  • Very Low Power Dissipation (98% efficient)

  • Industrial Temperature

  • Simple integration

Specifications for PSE Module, 1-Channel, IEEE802.3af, at & bt compliant

Role PSE
Compliance 802.3 af/at/bt
Output Voltage 48V/57V
Temperature Range Industrial Temperature with Temp protection
Power module package SIL
Channel Single Channel
Protection Over Current & Short Circuit
Output Power 19W – 75W
