AG7100 Boost Converter Module, 40W,

    SG$ 16.47 SG$ 16.47 16.474 SGD

    US$ 12.80

    This combination does not exist.

    Add to Cart

    Boost Converter Module, 40W, Isolated DC-DC converter, IEEE802.3at compliant, 11-27V In, 48/57V Out, DIL.


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Silvertel

    Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality.

    FIND OUT MORE

    Overview

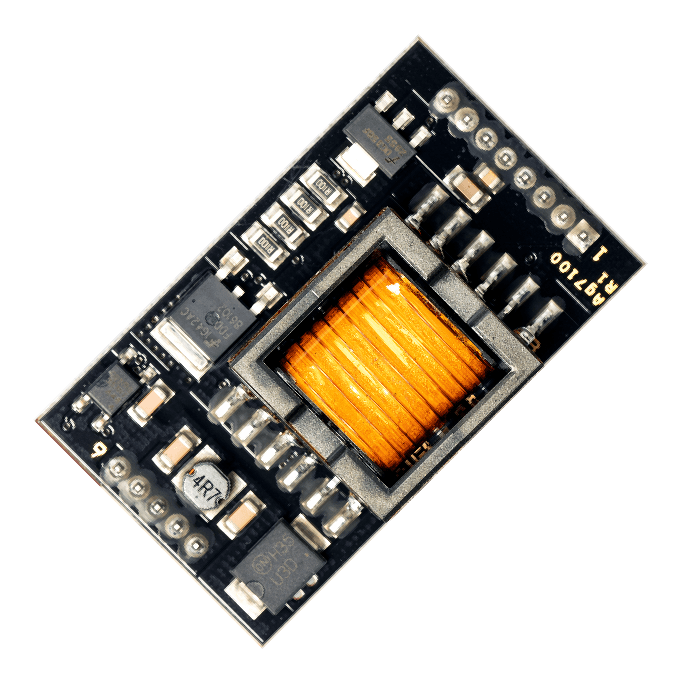

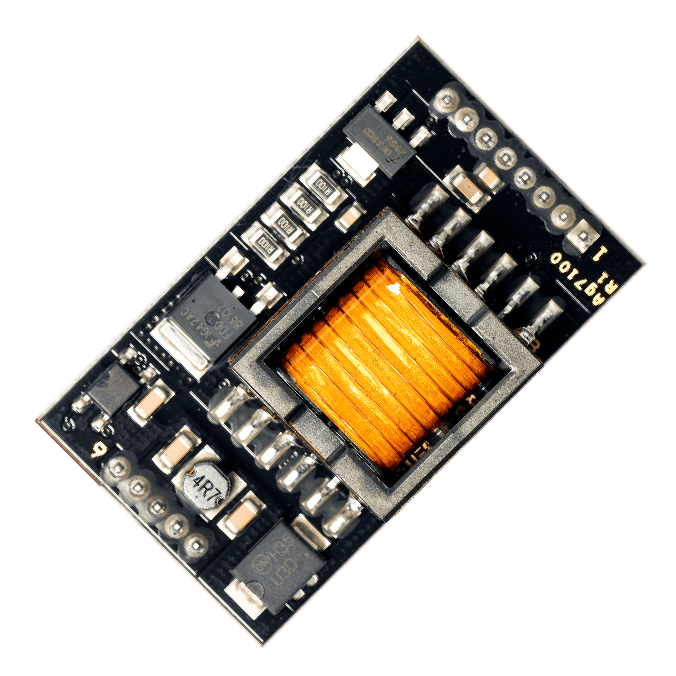

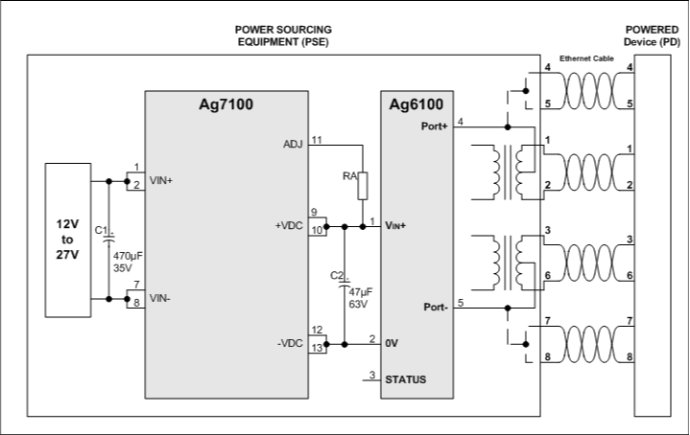

    Ag7100 provides a cost and footprint optimised 40W isolated DC-DC converter, to boost 12V/24V up to 48V/57V. It is perfect for PoE, PSE or other applications requiring a convenient solution with minimal additional components and easy integration. It is an ideal functional complement to the Ag6100 PSE module.

    Features


    • Wide input supply 11V - 27V DC

    • Maximum power 40W

    • 48V to 57V Output

    • Small footprint - 51mm(L) x 30mm(W) x16mm(H)

    • 1.5kV isolation

    • Over-current, thermal & short circuit protection

    • High efficiency (>90%)

    • Low noise and output ripple

    • Simple integration

    Evaluation Kits

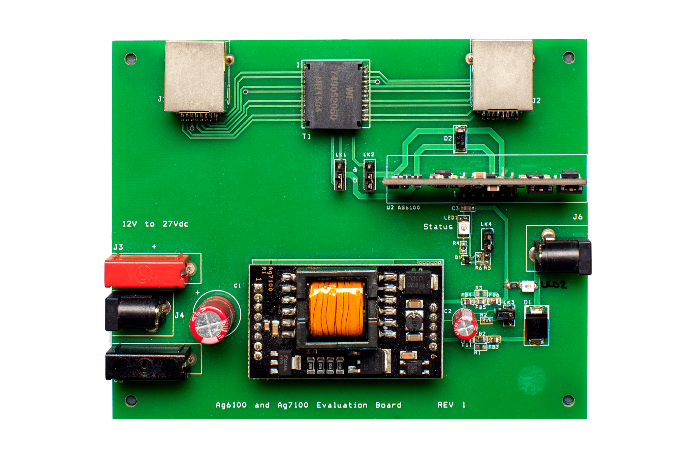

    This is Silvertel’s new EVAL board to cover both the Ag7100 DC-DC converter and it’s complementary and frequently associated Ag6100 PSE module.


    It is designed to allow simple and combined or separate testing and evaluation of both Silvertel’s Ag6100 POE PSE module as well as the Ag7100 DC-DC Boost converter. With either 12V or 24V nominal DC input, the output of the Ag7100 is linked on the Eval board directly to the input of the Ag6100 as it would be if being used to design a PSE power circuit. It is designed to provide a complete Power Sourcing Equipment (PSE) functional power block, when fitted with both modules, providing up to 40W of PSE output power onto the CAT5/6 cable as an output at either 48V or 57V.
