  2. ASR5601 Bluetooth 5.2 SoC
SGD Pricelist

ASR5601 Bluetooth 5.2 SoC

    SG$ 1.56 SG$ 1.56 1.5630000000000002 SGD

    US$ 1.20

    This combination does not exist.

    Add to Cart

    The ARM® Cortex™ M0+ MCU processes BLE software stacks and user’s application software The Cortex™-M0+ core ensures high efficiency and low power. With RF and modem, this SoC supports BLE 125K/500K/1M/2M bps data rates. ASR5601N-ML is designed to meet various kinds of IoT applications such as the data transmission, the remote controller and the speech recognition. OTP is integrated in order to enhance the system's security

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    ASR Micro

    ASR is a platform company specialized in the mobile intelligent communication terminal SoC, Internet of Thinghs, artificial intelligence, satellite navigation and other consumer electronics chips. The product line covers multi-standard communication standards of 2G, 3G, 4G, 5G and IoT. ASR is committed to offering complete SoC solutions for customers.


    FIND OUT MORE

    RF Transceiver and Modem

    • Integrated PA and TRSW, single-ended RF Pin, simple interface to antenna

    • Two-point modulation transmitter with robust calibration algorithm

    • Low power receiver with configurable analog BB for 1 MHz and 2 MHz bandwidth

    • RF transceiver and modem supporting BLE 5.2

    • -95 dBm sensitivity at BLE 2 Mbps GFSK

    • -98 dBm sensitivity at BLE 1 Mbps GFSK

    • -104 dBm sensitivity at BLE 500 Kbps GFSK

    • -106 dBm sensitivity at BLE 125 Kbps GFSK

    • -30 dBm to +10 dBm output RF power with low harmonic emissions

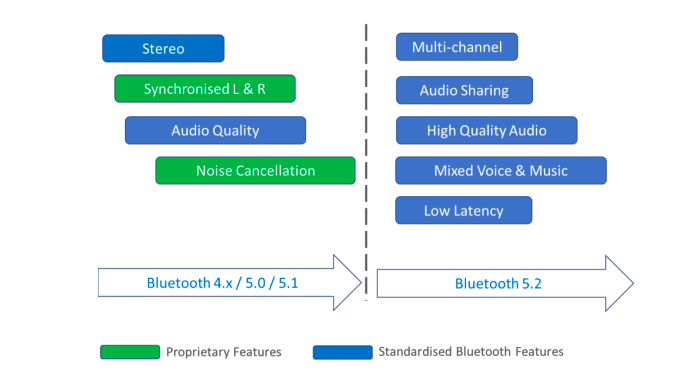

    Bluetooth Low Energy 5.2

    • Bluetooth version 5.2 specifications compliant, targeting BLE features only

    • Supporting BLE Mesh Network (SIG MESH V1.x)

    • Support all packets types

    • Support WLAN coexistence mechanism (PTA)

    • Support all device roles (broadcaster, central, observer, peripheral)

    • Support encryption/decryption (AES-CCM) and bit stream processing (CRC, whitening)

    • Support frequency hopping calculation (scheme #1 and scheme #2)

    • Support FDMA/TDMA/events formatting and synchronization

    • Support AHB slave interface for registers access and exchange memory of the CPU access via BLE core

    • Support 16 MHz and 8 MHz operating clock

    • Support power down BLE core during protocol’s idle periods and runs at either 32.0 KHz or 32.768 KHz clock

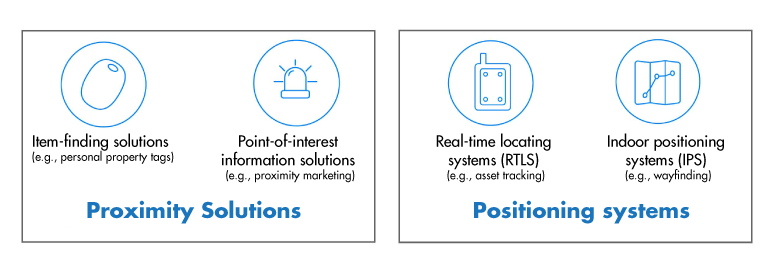

    Applications
