Cypress SDIO bgn WIFi Combo Baseband module

  • Wi-Fi Compliance
  • Bluetooth version
  • Security
  • Interface
  • Chipset
  • Operation Temperature range

SG$ 3.01 SG$ 3.01 3.0088000000000004 SGD

US$ 2.31

This combination does not exist.

Add to Cart

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Winext

Lierda is a hi-tech enterprise in the national key area. For more than ten years, it has been dedicated to technology and market promotion of IoT embedded industry, and has abundant technical strength. More than 30% of the Company’s employees are technical researchers and developers, and possess a wealth of practical experience in embedded micro control technology, RF hardware R&D, communication and networking technology. In the IoT wireless communication field, Lierda has developed mature communication solutions as NB-IoT, LoRa, Wi-Fi, BLE, ZigBee and RF; the underground garage energy-saving lighting, wireless four-meter centralized reading, room energy consumption monitoring and analysis, smart cold chain, smart electric vehicle, smart retail terminal, smart AD delivery, smart air monitoring and purification, smart shoes and other system solutions which are put forward by it have been widely applied.


FIND OUT MORE

Overview

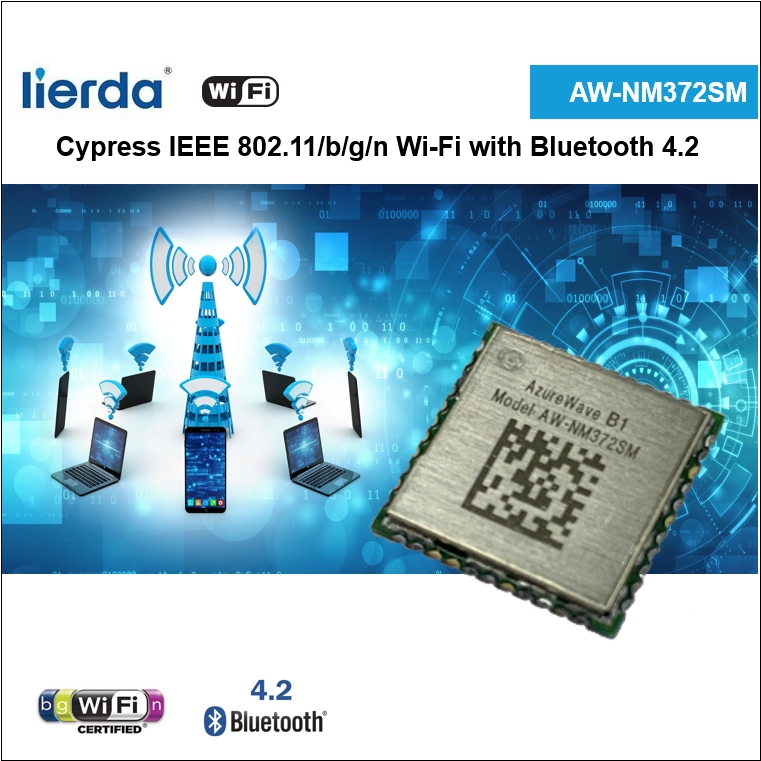

Advanced IEEE 802.11 b/g/n WLAN, Bluetooth and FM combo module - AW-NM372SM. The module is targeted to mobile and embedded devices which need a small footprint package, low power consumption, and multiple OS support. The module supports 2.4GHz IEEE 802.11n MAC/baseband/radio, and Bluetooth 4.2 functionality. It also features an integrated Power Management Unit (PMU), Power Amplifiers (PAs), and a Low Noise Amplifier (LNA) to address the needs of mobile devices that require minimal power consumption and compact size.

Features

  • Integrates Broadcom solutions of CYW43438_A1 WiFi /BT/FM RX SoC

  • SDIO v2.0 interfaces support for WLAN

  • High-speed UART and PCM for Bluetooth

  • Lead-free Design

  • 12.0mm(L) x 12.0mm(W) x 1.5 mm(H) 47 pin LGA package

  • With Crystal(XTAL) 1.2.1 WLAN

  • Single band 2.4 GHz 802.11 b/g/n

  • WLAN host interface options

  • SDIO v2.0, including DS and HS modes

  • Security–WEP, WPA/WPA2 (personal), AES (HW), TKIP (HW), CKIP (SW), WMM/WMM-PS/WMM-SA

Applications

Specifications for Cypress SDIO bgn WIFi Combo Baseband module

Wireless
Wi-Fi Compliance 802.11 b/g/n
Bluetooth version Bluetooth 4.2
Security Cisco® Compatible Extension CCX5.0
External
Interface SDIO
Uncategorized
Chipset CYW43438
Operation Temperature range -30~85 oC
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products

Suggested alternatives:
[AW-CM256SM] Cypress SDIO abgnac Wi-Fi Combo Baseband module
Cypress SDIO abgnac Wi-Fi Combo Baseband module
[AW-NM288SM] Cypress SDIO bgn WIFi Baseband module
Cypress SDIO bgn WIFi Baseband module

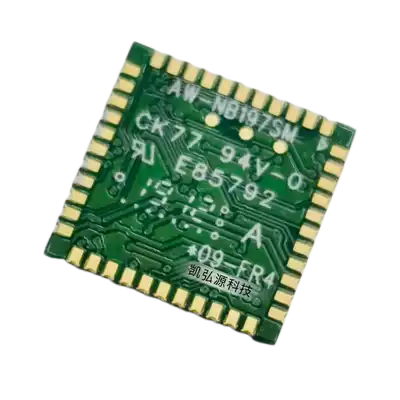

[AW-NB197SM] Cypress SDIO bgn WIFi Combo Baseband module
