BT860 Series Bluetooth 5.0 Dual Mode USB HCI Module

  • Antenna

SG$ 94.99 SG$ 94.99 94.99 SGD

US$ 69.00

This combination does not exist.

Add to Cart

DVK - BTv4.2 Dual Mode UART HCI - External Antenna

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


We simplify the rapid integration of wireless connectivity with innovative solutions, world-class manufacturing and unparalleled customer support. Our culture creates a fast moving, flexible work environment attracting employees who focus on providing accelerated profitable growth. Our vision is to be the technology behind every innovative and reliable wireless solution by 2025.



The BT86x series of UART HCI modules leverage the Cypress CYW20704 A2 chipset to provide exceptionally low power consumption with an outstanding range for OEMs needing both Classic Bluetooth and Bluetooth Low Energy support. The Bluetooth 5 core specification shortens your development time and provides enhanced throughput, security and privacy.

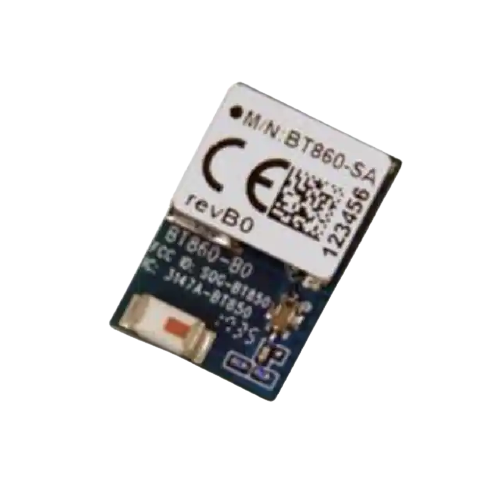

The BT860 modules are ideal when designers need both performance and minimum size. For maximum flexibility in integration, they support a host UART interface, I2S and PCM audio interfaces, GPIO, and Cypress' GCI coexistence(2-Wire). The modules provide excellent RF performance and identical footprint options for an integrated antenna or an external antenna via a trace pin.

These modules present a Bluetooth standard HCI interface with support for Linux / Android and Embedded Bluetooth software stacks for operating system-backed devices. Additionally, Laird has partnered with SEARAN for support of their ultra-small, flexible ‘dotstack’ platform for embedded Cortex M3 and M4 implementations.


  • Bluetooth v5.0 – Dual Mode – BR / EDR / LE – Classic Bluetooth and Bluetooth Low Energy (BLE)

  • Compact Footprint – As small as 8.5 x 12.85 mm

  • Class 1 Output – up to 8 dBm

  • UART Host interface

  • GPIO, GCI, I2S and PCM

  • Industrial Operating Temp: -30° to +85°C

  • Bluetooth SIG approved – Hardware Controller Subsystem

  • International regulatory approvals – FCC, IC, CE, RCM, Korea, and Japan approvals

  • Broad BT Stack Support – Linux, Android, Embedded

  • Fully-Featured Development Kit – Low-cost kit for prototyping/debugging/integration testing to speed development time


Specifications for BT860 Series Bluetooth 5.0 Dual Mode USB HCI Module

Antenna External Antenna or Integrate Antenna
