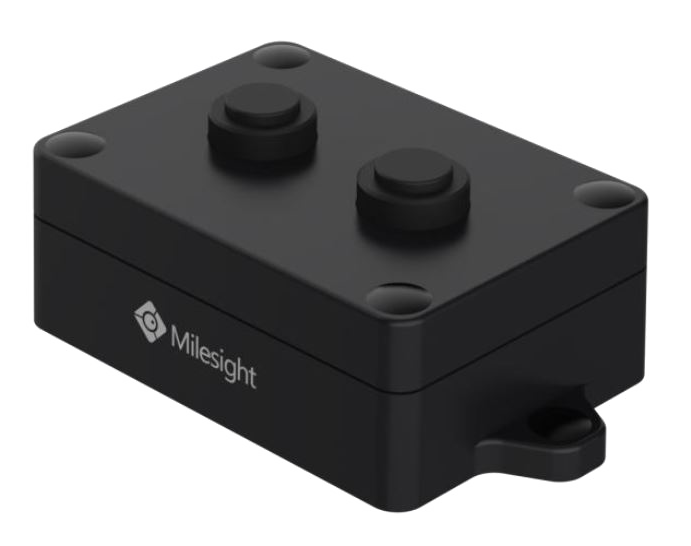

EM310-UDL LoRaWAN Ultrasonic Distance/Level Sensor
With dual ultrasonic beams, the advanced EM310-UDL measures from 3 cm up to 450 cm, thus has ultra-short blind zone.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview

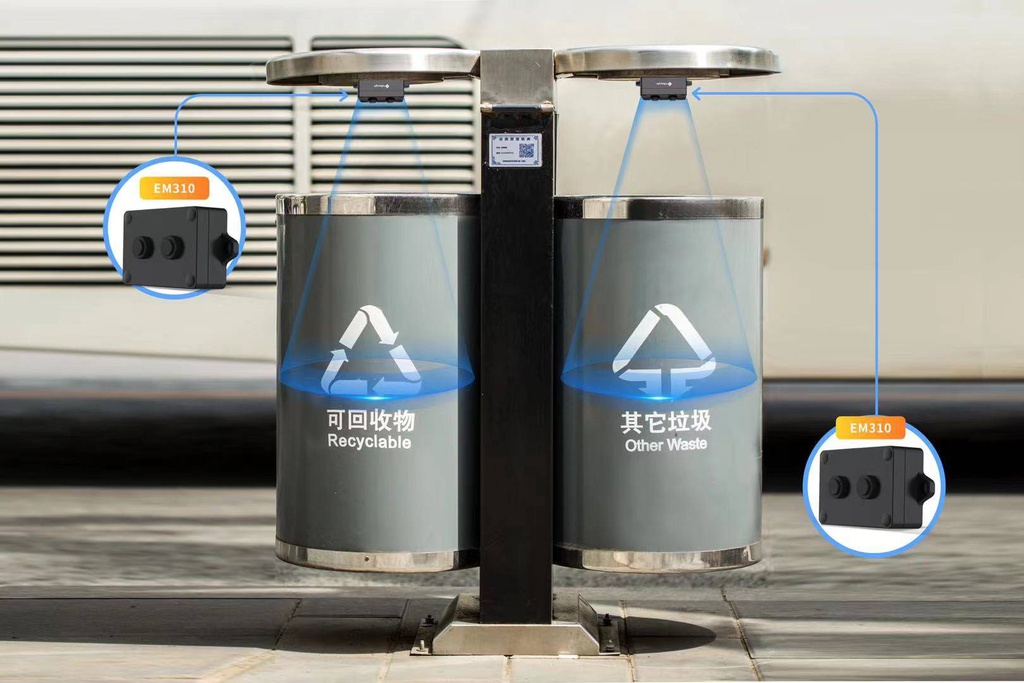

The EM310-UDL is a LoRa ultrasonic distance sensor mainly used for detecting the level of garbage garbage cans and other containers.
With a compact size and large measurement range, the EM310-UDL can be installed to waste garbage cans or containers to solid or liquid fill level.
In addition, EM310-UDL is equipped with a 3-axis accelerometer to detect the status of the container lid.
Compatible with Milesight LoRaWAN® gateway and Milesight IoT cloud solution, users can remotely detect container status and fill level in real time via a browser or mobile app.
EM310-UDL can be widely used in waste management, water tank monitoring, manhole cover monitoring, etc.
Features
Specifications for EM310-UDL LoRaWAN Ultrasonic Distance/Level Sensor
| LoRaWAN | |
|---|---|
| Configuration Interface | NFC |
| Uncategorized | |
| Frequency band | AS923 or AU915 or US915 |
| Sensor | Ultrasonic + Accelerometer |
| Class | Class A |
| Power type | Battery |
| Battery Capacity | 2 × 3500 mAh ER17505 Li-SOCl2 battery |
| Cable length | NA |
