FX20K120 Fast Efficient Rectifier Diodes- Protectifiers

  • Voltage - DC Reverse (Vr) (Max)
  • Current - Average Rectified (Io)
  • Voltage - Forward (Vf) (Max) @ If
  • Speed
  • Reverse Recovery Time (trr)
  • Current - Reverse Leakage @ Vr
  • Mounting Type
  • Operating Temperature - Junction
  • Package

SG$ 0.39 SG$ 0.39 0.38880000000000003 SGD

US$ 0.29

This combination does not exist.

Add to Cart

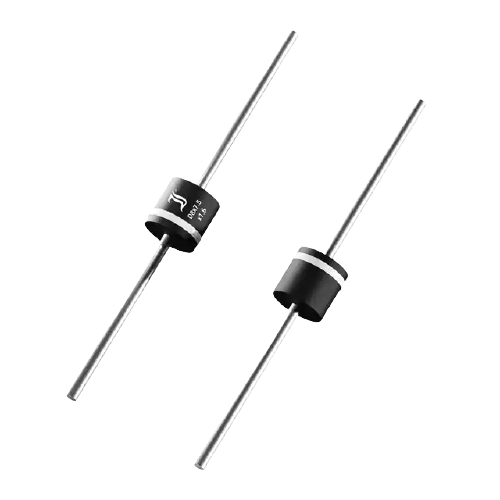

Diode Standard 120 V 20A Through Hole P600


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Diotec

Semiconductor Diodes and Rectifiers have always been essential components of electronic devices. Rectifiers in power supplies, diodes for signal processing or protective elements in various circuits: Modern electronics cannot work without these parts.

Since more than 40 years, Diotec is active in this highly competitive market. Know how, innovations and customer service are the basis of our success.


More details


Overview

Fast efficient Rectifier Diode

120V Stand off voltage ;

Forward Current 20A;

Fast recovery speed : 300ns

Features

  • Low Forward Voltage drop

  • Low thermal resistance

  • High forward surge capability

  • High reverse robustness

  • Package smaller to industrial standard

Specifications for FX20K120 Fast Efficient Rectifier Diodes- Protectifiers

Diode
Voltage - DC Reverse (Vr) (Max) 120V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 940 mV @ 20 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 300 ns
Current - Reverse Leakage @ Vr 5 µA @ 120 V
Mounting Type Through Hole
Operating Temperature - Junction -50°C ~ 175°C
Uncategorized
Package Type & Reel
