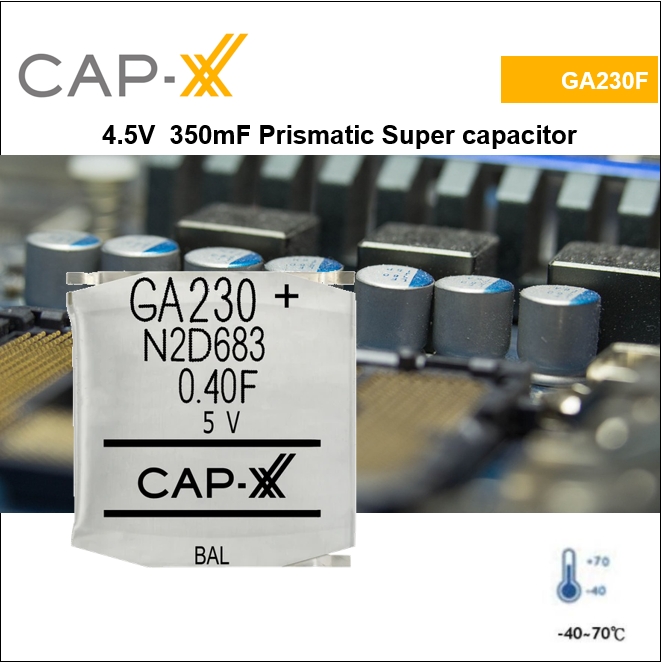

GA230F Dual Cell 4.5V 350mF

    SG$ 16.46 SG$ 16.46 16.4582 SGD

    US$ 12.14

    This combination does not exist.

    Add to Cart

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    CAP-XX is a world leader in the design and manufacture of thin, flat supercapacitors and energy management systems used in portable and small-scale electronic devices.

    The unique feature of CAP-XX supercapacitors is their very high power density and high energy storage capacity in a space-efficient prismatic package. These attributes are essential in power-hungry consumer and industrial electronics, and deliver similar benefits in automotive and other transportation applications.



    The GA230 is a dual cell supercapacitor with two GA130 cells in series, so GA230 capacitance = Capacitance of GA130/2 and GA230 ESR = 2 x GA130 ESR.


    • Ultra-thin prismatic cells and modules: Ideal for use in space-constrained devices

    • Exceptional power density (up to 128 kW/litre), with best-in-class ESR (from 15 m?)

    • High energy density (up to 1.9 Wh/litre), offering high Capacitance in small cells

    • True, continuous operating voltage of up to 2.75V/cell (H series; 2.9V peak)

    • High temperature rating (H series; 85°C maximum)

    • Excellent low temperature performance (G series; ~2x nominal ESR at -30°C)

    • Very low leakage current (<1 µA) and ultra-low minimum charge current (<20 µA)

    • Virtually unlimited charge-discharge cycle life

    • Excellent frequency response (CEFFECTIVE)

    • RoHS and REACH compliant, Lead-free, Halogen-free and Conflict metal-free

    • UL-810 and ISO 9001:2015 certified
