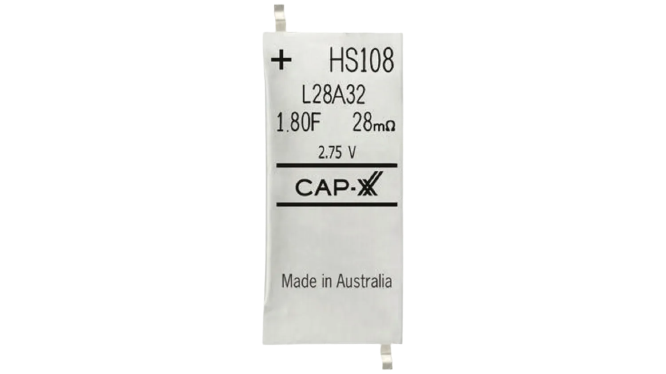

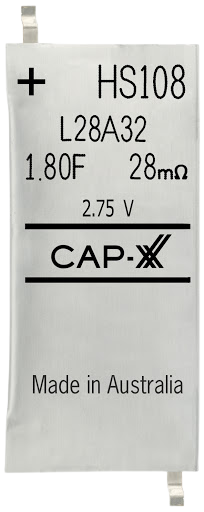

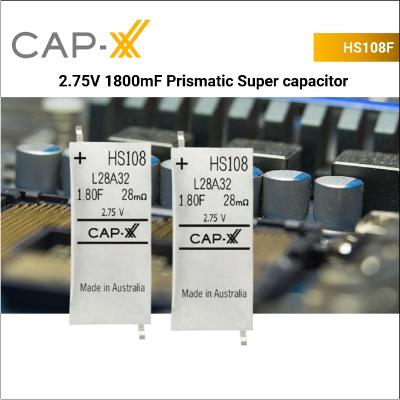

HS108F 2.75V 1800mF Prismatic Super capacitor
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
CAP-XX supercapacitors deliver outstanding power and energy performance in a number of footprints, configurations, voltage ratings and environmental specifications. They are ideally suited to meet the peak power demands of pulsed loads in battery-powered electronics and many other consumer and industrial devices with a current-limited energy source.
Features
Ultra-thin prismatic cells and modules: Ideal for use in space-constrained devices
Exceptional power density (up to 128 kW/litre), with best-in-class ESR (from 15 m?)
High energy density (up to 1.9 Wh/litre), offering high Capacitance in small cells
True, continuous operating voltage of up to 2.75V/cell (H series; 2.9V peak)
High temperature rating (H series; 85°C maximum)
Excellent low temperature performance (G series; ~2x nominal ESR at -30°C)
Very low leakage current (<1 µA) and ultra-low minimum charge current (<20 µA)
Virtually unlimited charge-discharge cycle life
Excellent frequency response (CEFFECTIVE)
RoHS and REACH compliant, Lead-free, Halogen-free and Conflict metal-free
UL-810 and ISO 9001:2015 certified
