Overview

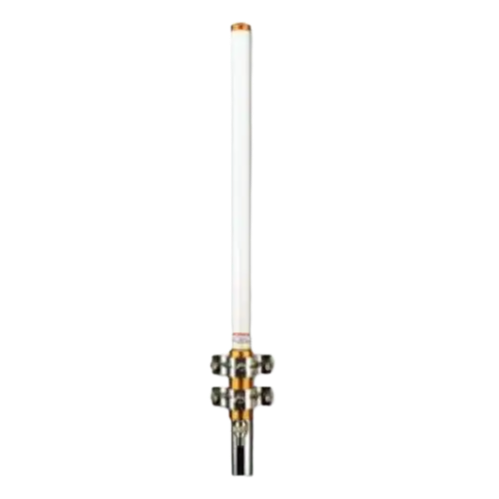

The FG4300 from Laird (formerly Antenex) is a heavy-duty, omni-directional fiberglass base station antenna.  It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating.

The radiating elements are tuned for the 430-450 MHz and made from high-efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a cold sleeve allowing great freedom in mounting. This high-quality and well-focused beam provides the highest gain and best efficiency.

Features

• Frequency: 430-450 MHz
• Gain: Unity/ 2.15 dBi
• Length: 26 inches
• 100% tested on a network analyzer before shipping to assure the best performance.
• Special UV Treated - stands up to the sun over years of service.

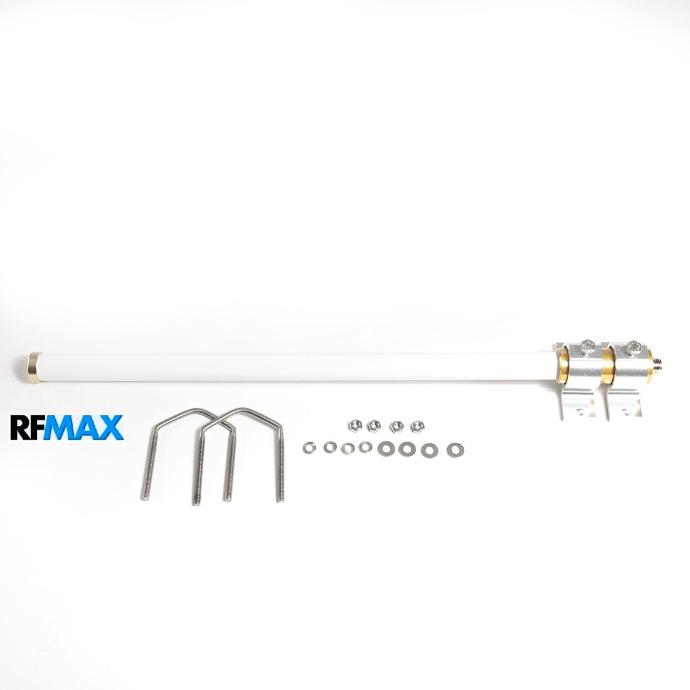

• Durable gold-anodized sleeve and cap with N Female connector.
• Five-Year Factory Warranty.
