LoRaWAN Distance Detection Sensor

  • LoRa transceiver
  • Cable length
  • Frequency band
  • OpenCPU
  • Sensor
  • Waterproof
  • Class
  • Power type
  • LoRaWAN version
  • Sensor Measurement Range
  • Battery Capacity

SG$ 60.33 SG$ 60.33 60.334300000000006 SGD

US$ 45.00

This combination does not exist.

Add to Cart

The Dragino LSPH01 is a LoRaWAN Soil pH Sensor for IoT of Agriculture. It is designed to measure the soil PH and soil temperature, so to send to the platform to analyze the soil acid or alkali level. The probe is IP68 waterproof.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.

More Detail

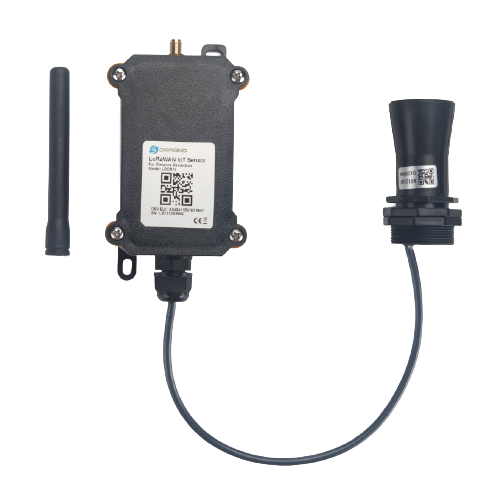

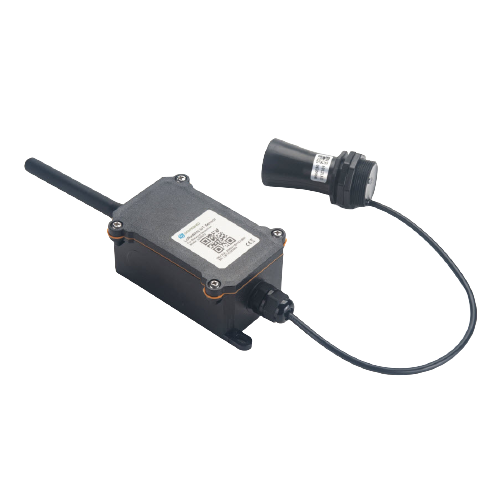

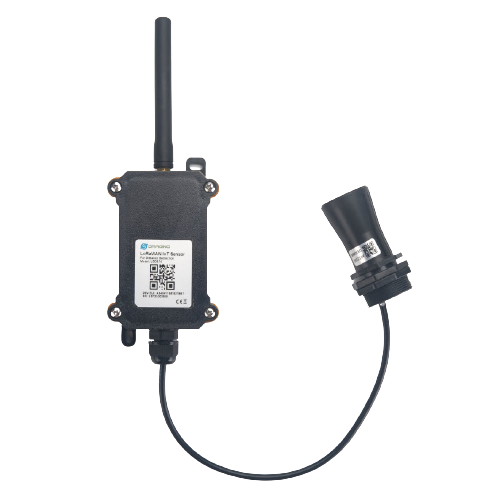

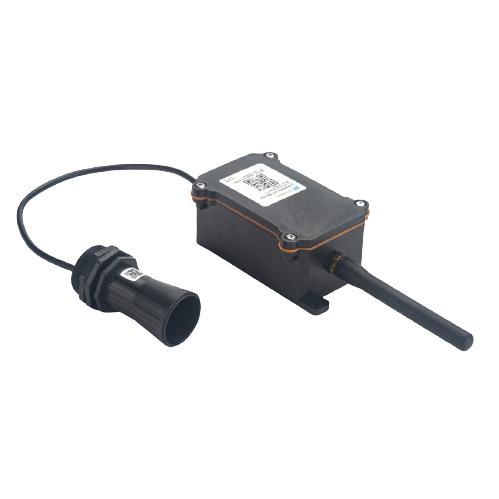

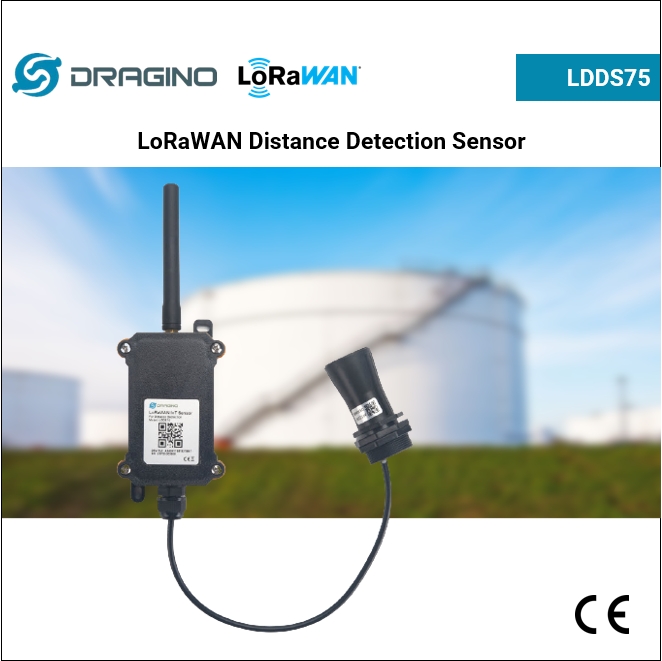

The Dragino LDDS75 is a LoRaWAN Distance Detection Sensor for Internet of Things solution. It is used to measure the distance between the sensor and a flat object. The distance detection sensor is a module that uses ultrasonic sensing technology for distance measurement, and temperature compensation is performed internally to improve the reliability of data.

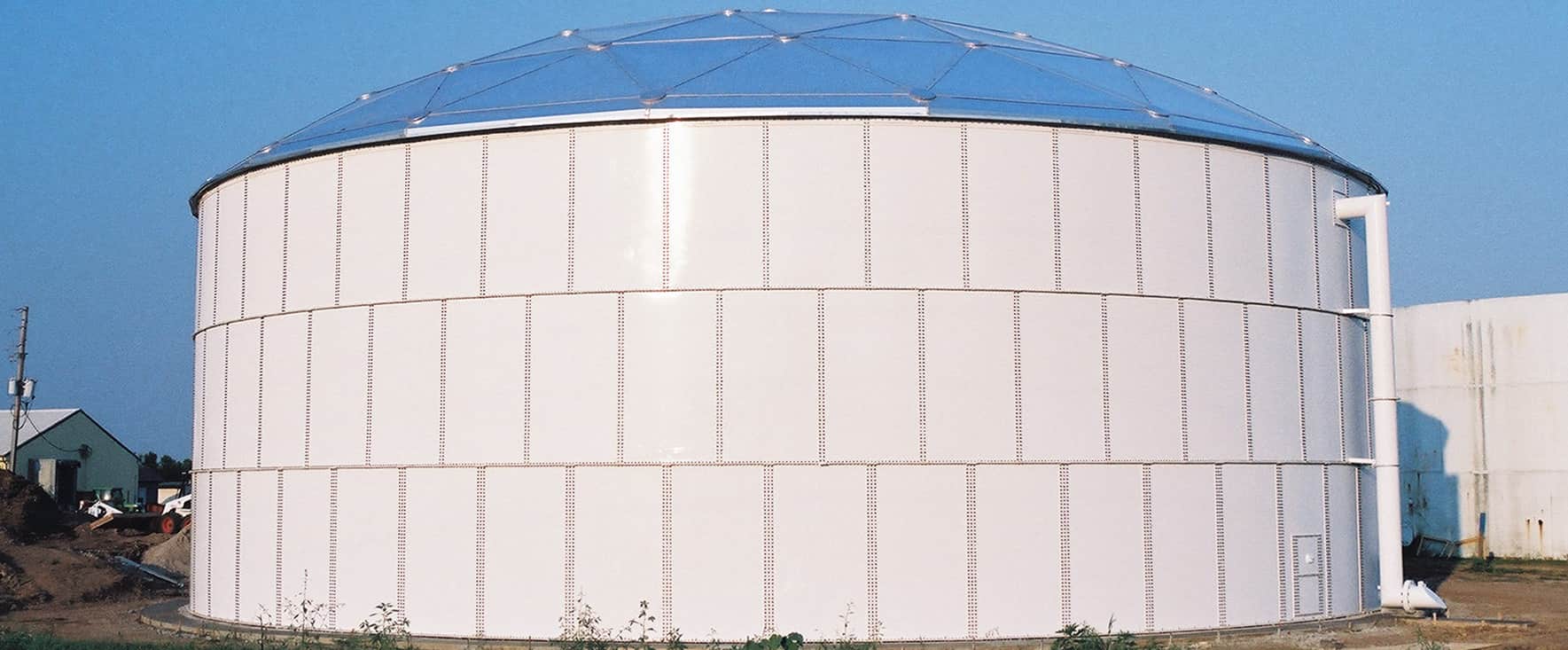

The LDDS75 can be applied to scenarios such as horizontal distance measurement, liquid level measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, bottom water level monitoring, etc.

It detects the distance between the measured object and the sensor, and uploads the value via wireless to LoRaWAN IoT Server.

The LoRa wireless technology used in LDDS75 allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.


  • LoRaWAN 1.0.3 Class A

  • Ultro low power consumption

  • Distance Detection by Ultrasonic technology

  • Flat object range 280mm - 7500mm

  • Cable Length : 25cm

  • Temperature Compensation

  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865

  • AT Commands to change parameters

  • Uplink on periodically

  • Downlink to change configure

  • IP66 Waterproof Enclosure

  • 4000mAh or 8500mAh Battery for long term use


Specifications for LoRaWAN Distance Detection Sensor

LoRa transceiver SX1262
Battery Capacity 4000mAh or 8500mAh
Cable length 0.25m
Frequency band AS923
OpenCPU No
Sensor Ultrasonic
Waterproof IP67
Class Class A
Power type Built-in Li-SOCL2 battery
LoRaWAN version 1.0.3
Sensor Measurement Range 0.28~7.5m
