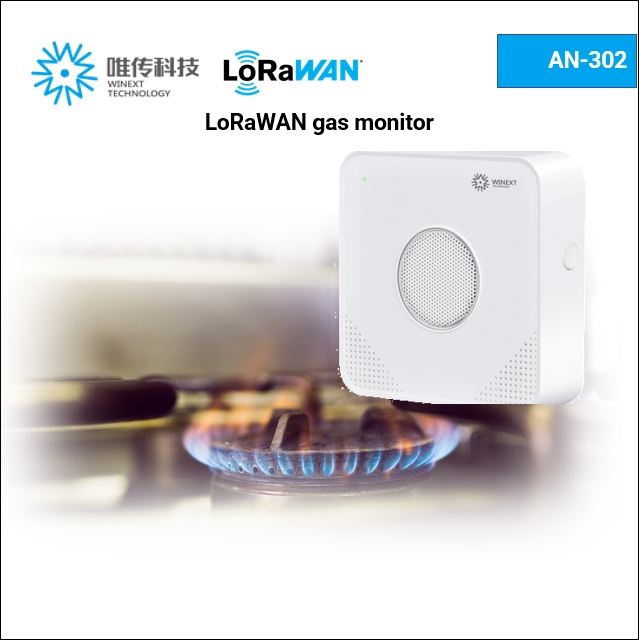

LoRaWAN Gas Monitor AN-302
AN-302 is a wireless gas leakage detector. It has a built-in gas detection sensor with low power consumption and high detection accuracy. When there is gas leakage, and the gas density is up to a set threshold value, the device will report the alarm to the cloud monitoring platform through a LoRa gateway. The cloud monitoring platform processes and analyzes the data, and interacts with the application platform to achieve real-time monitoring of combustible gas leakage status.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
AN-302 is a wireless gas leakage detector. It has a built-in gas detection sensor with low power consumption and high detection accuracy. When there is gas leakage, and the gas density is up to a set threshold value, the device will report the alarm to the cloud monitoring platform through a LoRa gateway. The cloud monitoring platform processes and analyzes the data, and interacts with the application platform to achieve real-time monitoring of combustible gas leakage status.
Features
Support LoRaWANTM Class A
Detecting methane gas leakage within 2 meters
Support AC220V
Built-in hardware watchdog circuit to ensure the long-term stable performance
Plastic shell with flame-retardant material
Working temperature range of -10℃~ +55℃
Strong anti-interference capability
Easy to install
Plug and play
Specifications for LoRaWAN Gas Monitor AN-302
| LoRaWAN | |
|---|---|
| Configuration Interface | UART |
| Uncategorized | |
| Frequency band | AS923 or AU915 or KR920 or US915 |
| Cable length | NA |
| Sensor | Methane Sensor |
| Waterproof | IP30 |
| Class | Class A |
| Power type | AC220V |
| Sensor Measurement Range | 7% LEL |
| Battery Capacity | NA |
