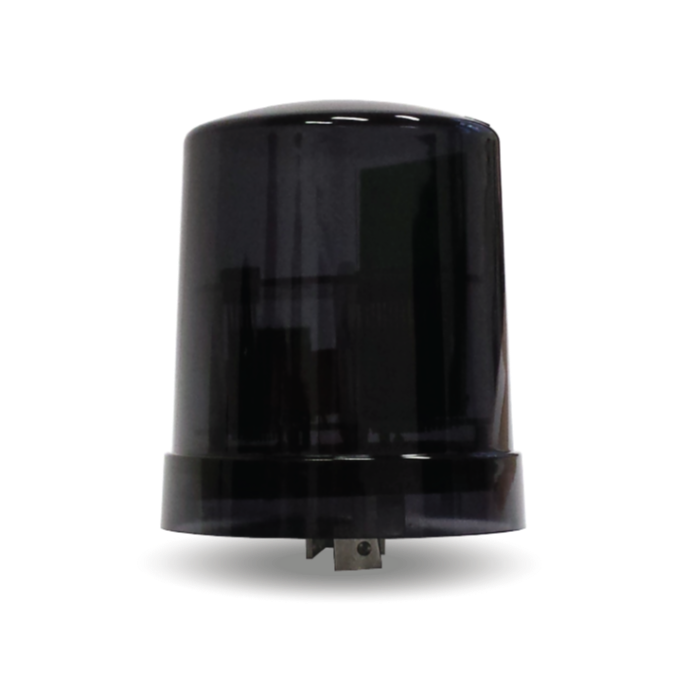

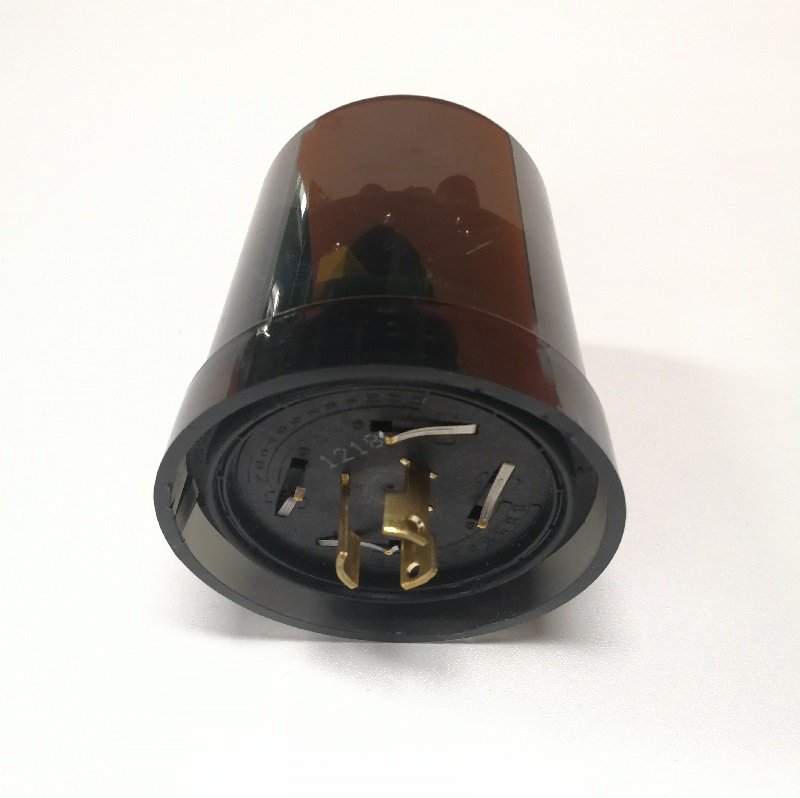

LoRaWAN NEMA Lamp Controller
Support NEMA and standard LoRaWAN Class C
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
WLC-NEMA-03 NEMA interface single lamp controller adopts LoRa narrowband Internet of Things communication technology. It is a high-performance street lamp and an energy-saving product developed especially for smart street lighting. The single lamp controller realizes the monitoring and collection of the voltage, current, power, electric energy, and other load working parameters of a single street lamp, and has functions such as controlling the street lamp switch and dimming. The product has electronic protection functions such as overload and short circuit protection, IP65 protection level, and can be used in harsh environments. Single-lamp controllers are widely used in tunnel lighting, urban road lighting, landscape lighting, etc.
Features
Integrated standard LoRaWAN communication protocol
It has the function of collecting data such as current, voltage, power, and electric energy of street lights
With the function of proactively reporting fault information
With the remote turn on, turn off, and dimming functions
1 PWM or 0~10V dimming output
IP65 protection level can be used in harsh environments
Electronic protection functions such as overload and short circuit protection
Perceive light and dark changes, support automatic adjustment of street lamp brightness
Specifications for LoRaWAN NEMA Lamp Controller
LoRaWAN | |
---|---|
Configuration Interface | UART |
Uncategorized | |
Sensor | with Photo cell or without photo cell |
Frequency band | AS923 or AU915 or KR920 or US915 |
Cable length | NA |
Waterproof | IP68 |
Class | Class C |
Power type | NEMA Socket |
Sensor Measurement Range | NA |
