LoRaWAN Temperature & Humidity Sensor

  • LoRa transceiver
  • Cable length
  • Frequency band
  • OpenCPU
  • Sensor
  • Waterproof
  • Class
  • Power type
  • LoRaWAN version
  • Sensor Measurement Range
  • Battery Capacity

SG$ 60.72 SG$ 60.72 60.7173 SGD

US$ 45.00

This combination does not exist.

Add to Cart

LSN50 is an open source product, it is based on the STM32Cube HAL drivers and lots of libraries can be found in ST site for rapid development.
1 x LSN50 v2 module
1 x External RF antenna

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.

More Detail

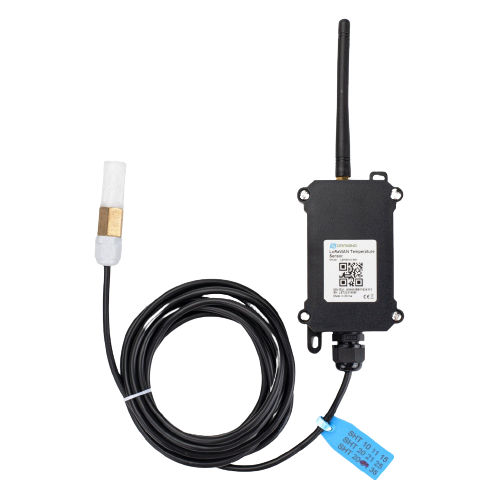

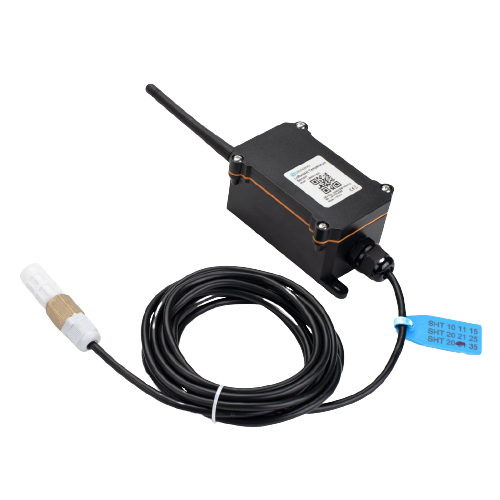

The Dragino LSN50v2-S31 is a LoRaWAN Temperature and Humidity Sensor for Internet of Things solution. It is used to measure the surrounding environment temperature and relative air humidity precisely, and then upload to IoT server via LoRaWAN wireless protocol.

The temperature & humidity sensor used in LSN50v2-S31 is SHT31, which is fully calibrated, linearized, and temperature compensated digital output from Sensirion, it provides a strong reliability

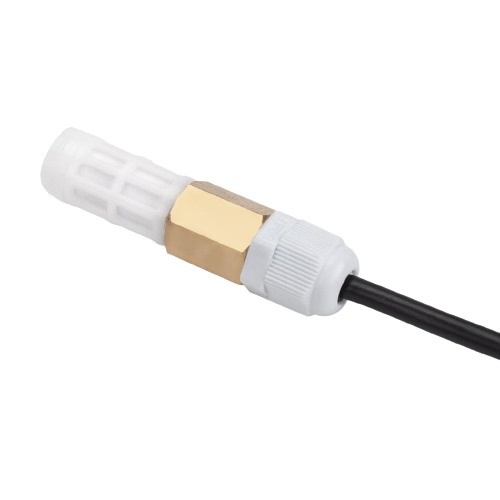

and long-term stability. The SHT31 is fixed in a waterproof anti-condensation casing for long term use.

LSN50v2-S31 supports temperature and humidity alarm feature, user can get alarm for instant notice.

LSN50v2-S31 is powered by 8500mAh Li-SOCI2 battery, It is designed for long term use up to 10 years. (Actually Battery life depends on the use environment, update period.Please check related Power Analyze report).

Each LSN50v2-S31 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto connect after power on.


  • LoRaWAN v1.0.3 Class A

  • Ultra low power consumption

  • External 3m SHT31 probe

  • Measure range -40°C ~ 80°C

  • Temperature alarm

  • Bands: CN470/EU433/KR920/US915

  • EU868/AS923/AU915/IN865

  • AT Commands to change parameters

  • Uplink on periodically or Interrupt

  • Downlink to change configure


Specifications for LoRaWAN Temperature & Humidity Sensor

LoRa transceiver SX1276
Cable length 3m
Frequency band AS923
OpenCPU No
Sensor Temperature/Humidity
Waterproof IP67
Class Class A
Power type Battery
LoRaWAN version 1.0.3
Sensor Measurement Range -40°C ~ 80°C
Battery Capacity 8500mA
