MG100 Micro Gateway, NB-IoT, BLE

Variant

SG$ 190.28 SG$ 190.28 190.2835 SGD

US$ 141.13

This combination does not exist.

Add to Cart

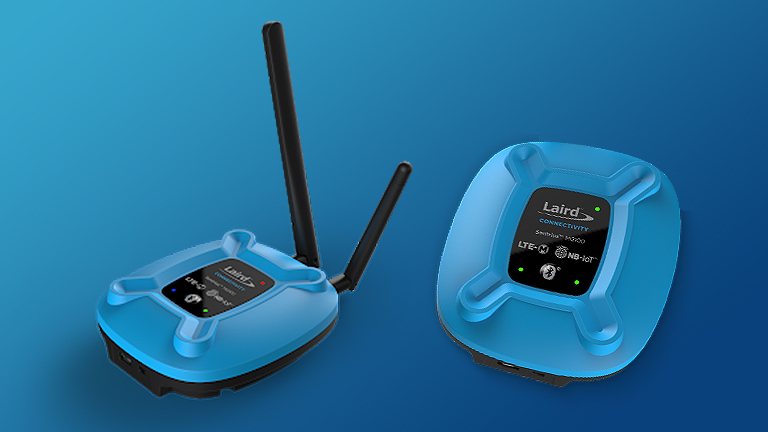

Sentrius™ MG100 Micro Gateway, LTE-M & NB1 Modem, BLE, External Antenna, Battery Backup, MVNO SIM

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Laird

We simplify the rapid integration of wireless connectivity with innovative solutions, world-class manufacturing and unparalleled customer support. Our culture creates a fast moving, flexible work environment attracting employees who focus on providing accelerated profitable growth. Our vision is to be the technology behind every innovative and reliable wireless solution by 2025.

FIND OUT MORE

Overview

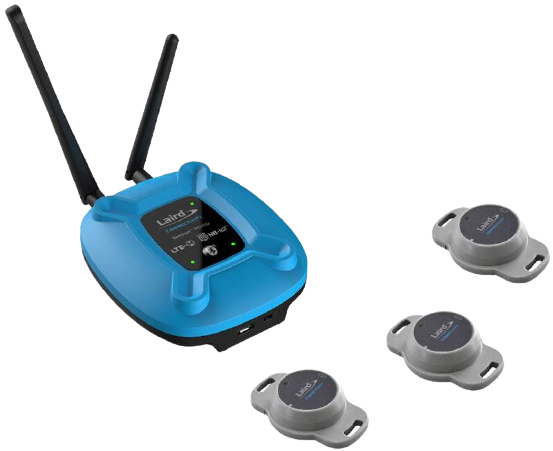

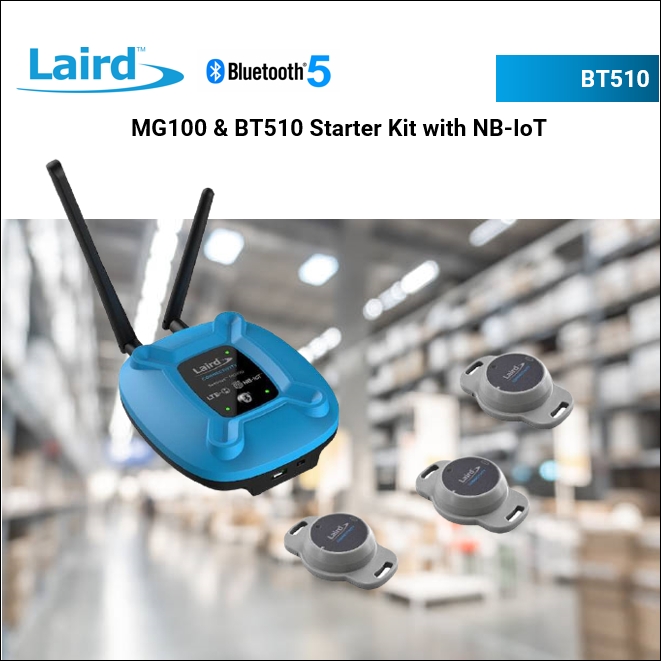

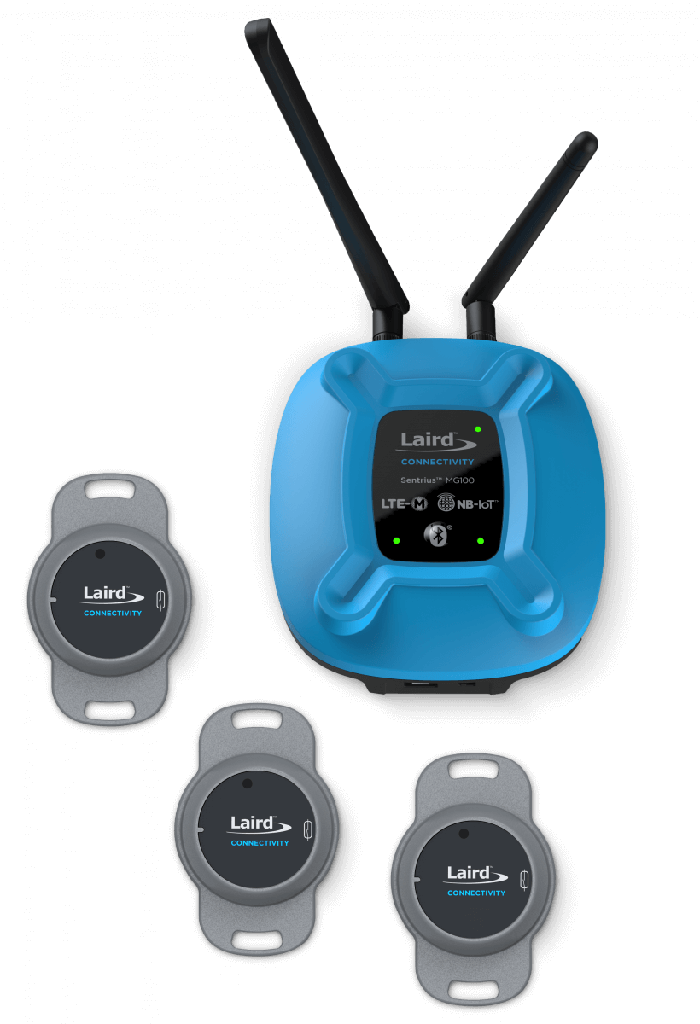

Laird Connectivity's Sentrius™ MG100 + BT510 IoT Starter Kit contains everything you need to start sending Bluetooth 5 Sensor data over LTE to the cloud!

Features

LTE-M / NB-IoT radio via Sierra Wireless HL7800 module (Chipset: Altair ALT1250)
LTE bands 1, 2, 3, 4, 5, 8, 12, 13, 20, 28
Nordic nRF52840 – BT v5, Coded PHY (Long range), 1MPHY & 2MPHY support
Onboard Cortex-M4F Microcontroller – 32-bit @ 64 MHz, 256 KB of RAM, 1 MB internal flash, 8 MB QSPI
NFC Support and integrated antenna
Certifications – FCC, IC, CE, BT SIG plus PTCRB, GCF and End Product certified – AT&T
Verizon & Vodafone( pending)
Flexible Programming via Zephyr RTOS
Antenna Options – Unique integrated antenna
variant plus external variant with SMA connectors
Battery backup options for mains power outage needs
Multi-purpose Button and 3 configurable LEDs
Compact Form Factor: 110.28mm x 99.16mm x 35.32mm
Customization – Custom branding, packaging, application development all available
