Omni Fiber Glass 440~450MHz 100W antenna
Omni Fiber Glass 440~450MHz 100W antenna
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview

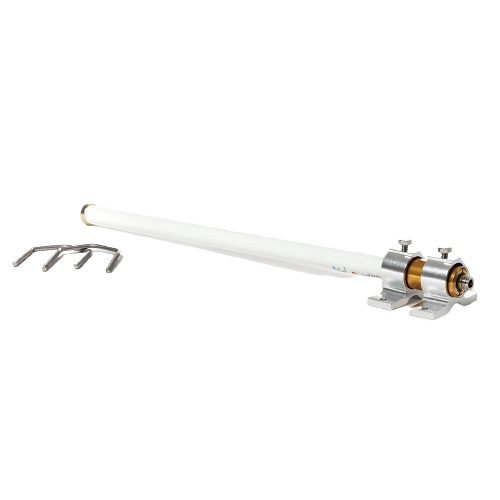

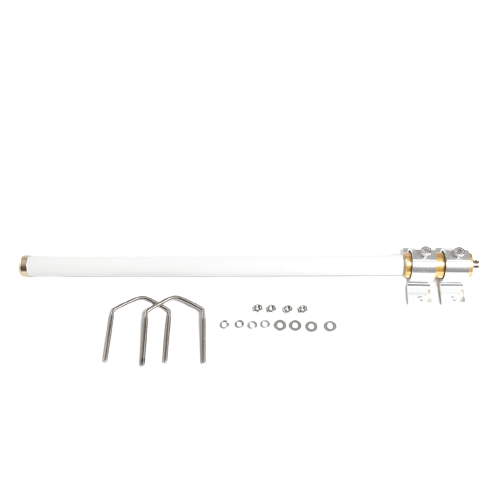

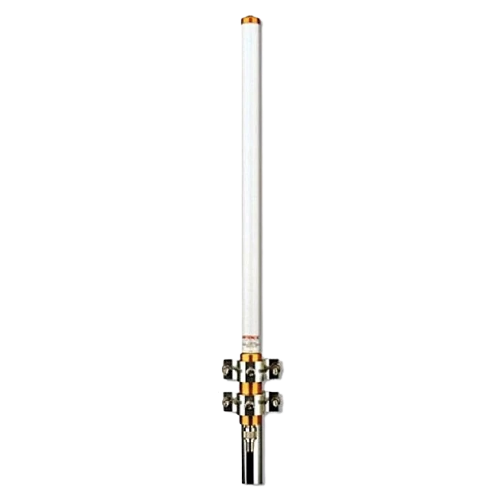

The FG4400 from Laird (formerly Antenex) is a heavy-duty, omni-directional fiberglass base station antenna. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating.
The radiating elements are tuned for the 440-450 MHz and made from high-efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a cold sleeve allowing great freedom in mounting. This high-quality and well-focused beam provides the highest gain and best efficiency.
Features
- Frequency: 440-450 MHz
- Gain: Unity/ 2.15 dBi
- Length: 26 inches
- 100% tested on a network analyzer before shipping to assure the best performance.
- Special UV Treated - stands up to the sun over years of service.
- Durable gold-anodized sleeve and cap with N Female connector.
- Five-Year Factory Warranty.
Specifications for Omni Fiber Glass 440~450MHz 100W antenna
| Antenna Gain | 2.15dBi or 5dBi or 3dBi |
