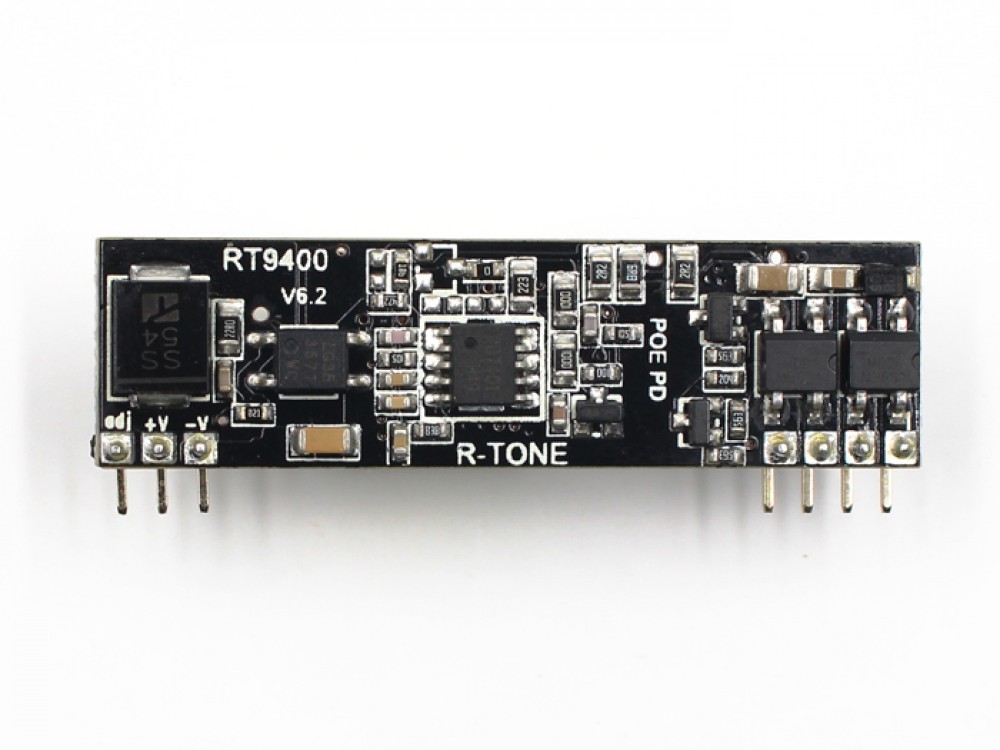

PD Module, Isolated DC-DC converter, Includes Bridge Rect diodes, IEEE802.3af compliant, 5V or 12V
PD Module, Isolated DC-DC converter, IEEE802.3af compliant, 5V, 12V SIL
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
The Ag9600 series of modules are designed to extract power from a conventional twisted-pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. The Ag9600 signature and control circuit provides the PoE compatibility signature required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The Ag9600 provides a Class 0 signature, classification programmable versions are available on request. The DC/DC converter operates over a wide input voltage range and provides a regulated output. The DC/DC converter also has built-in short-circuit output protection.
Features
IEEE802.3af compliant
Small SIL package size - 56mm (L) x 14mm (H)
Low cost
Input voltage range 36V to 57V
Minimal (low cost) external components required
Short-circuit protection
Adjustable Output
1500V isolation (input to output)
Silvertel “design-in” assistance
Specifications for PD Module, Isolated DC-DC converter, Includes Bridge Rect diodes, IEEE802.3af compliant, 5V or 12V
| Output Voltage | 5V or 12V |
| Build in Bridge | Yes or No |
| Role | PD |
| Compliance | IEEE 802.3af 13W |
| Temperature Range | Normal |
| Power module package | SIL |
| Channel | Single Channel |
| Power isolution | 1500Vdc |
| Protection | Thermal, Overload and short-circuit |
