PE29100 High-speed FET Driver

SG$ 5.17 SG$ 5.17 5.1746 SGD

US$ 3.86

This combination does not exist.

Add to Cart

High-speed FET Driver, 33 MHz

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

pSemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare. From headquarters in San Diego and offices around the world, pSemi’s team explores new ways to make electronics for the connected world smaller, thinner, faster and better.

FIND OUT MORE

Overview

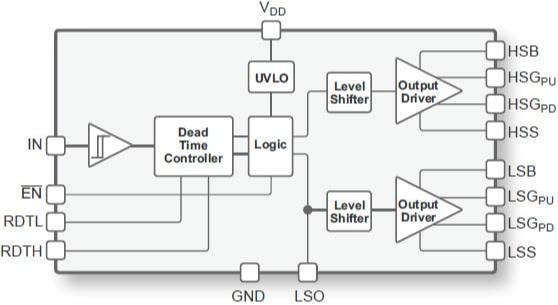

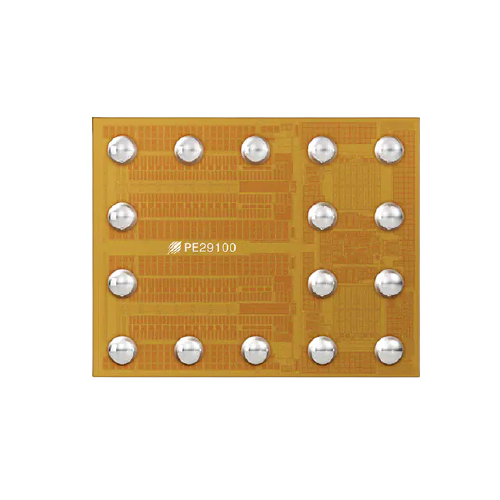

The PE29100 integrated high-speed driver is designed to control the gates of external power devices, such as enhancement-mode gallium nitride (eGaN®) FETs. The outputs of the PE29100 are capable of providing switching transition speeds in the sub-nanosecond range for hard switching applications up to 33 MHz. High switching speeds result in smaller peripheral components and enable new applications like the Rezence A4WP wireless power transfer. The PE29100 is available in a flip-chip package.

Features

High- and low-side FET drivers

Dead-time control

Fast propagation delay, 8 ns

Tri-state enable mode

Sub-nanosecond rise and fall time

2A/4A peak source, sink current
