PE29102 High Speed FET Driver

SG$ 5.04 SG$ 5.04 5.043200000000001 SGD

US$ 3.86

This combination does not exist.

High Speed FET Driver

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Psemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

FIND OUT MORE

Overview

The PE29102 is an integrated high-speed driver designed to control the gates of external power devices, such as gallium nitride (GaN) FETs. The outputs of the PE29102 are capable of providing switching transition speeds in the sub-nanosecond range for switching applications up to 40 MHz. The PE29102 is optimized for matched dead time and offers best-in-class propagation delay to improve system bandwidth. High switching speeds result in smaller peripheral components and enable innovative designs for applications such as Class D audio and wireless charging.

Features

High- and low-side FET drivers

Dead-time control

Fast propagation delay, 9 ns

Tri-state enable mode

Sub-nanosecond rise and fall time

2A/4A peak source/sink current

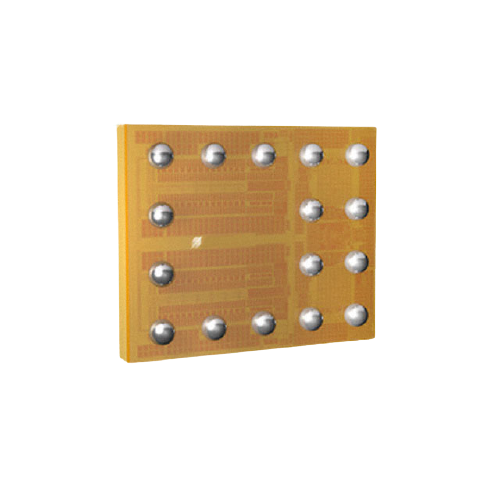

Packaging: Flip chip
