PE42020 SPDT, TruDC™, Absorptive, 50Ω RF Switch

SG$ 39.13 SG$ 39.13 39.1276 SGD

US$ 30.04

This combination does not exist.

Add to Cart

SPDT, TruDC™, Absorptive, 50Ω RF Switch

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Psemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

FIND OUT MORE

Overview

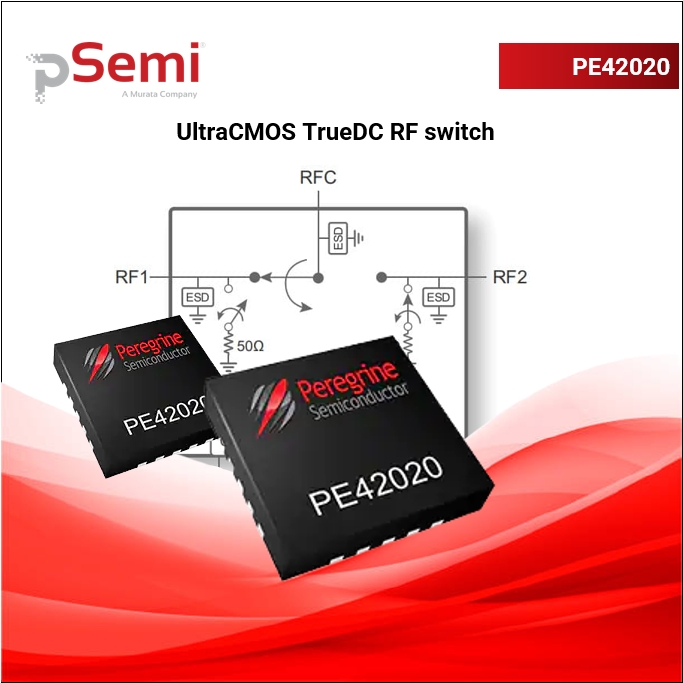

The PE42020 is a HaRP™ technology-enhanced SPDT True DC RF switch that operates from zero Hertz up to 8 GHz with integrated RF, analog and digital functions. The PE42020 can accommodate up to ±10V input DC voltage on the RF ports. It can be configured as a 50Ω absorptive or an open reflective True DC switch via the single LZ pin. The PE42020 True DC RF switch delivers excellent RF performance and high power handling down to zero Hertz, making this device ideal for handling the complex combination of DC, RF/analog and digital signals in test and measurement and automated test equipment applications.

Features

High power handling

Maximum voltage (DC or AC peak): ±10V on the RF ports

Total harmonic distortion (THD): –84 dBc

Configurable 50Ω absorptive or open reflective switch via a single pin (LZ)

Packaging: 20-lead 4 × 4 mm QFN
