PE42430 SP3T RF switch

    SG$ 2.57 SG$ 2.57 2.57 SGD

    US$ 1.86

    This combination does not exist.

    Add to Cart

    SP3T, Low IL, Reflective, 50Ω RF Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

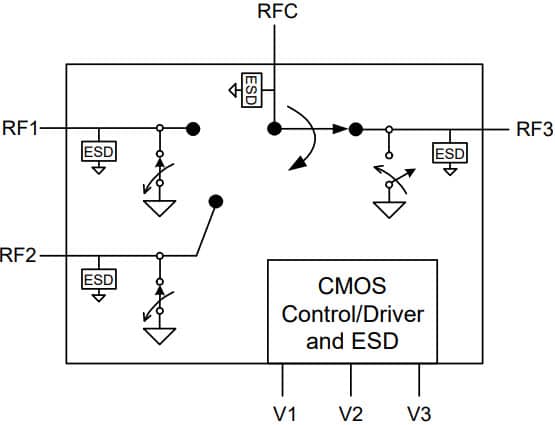

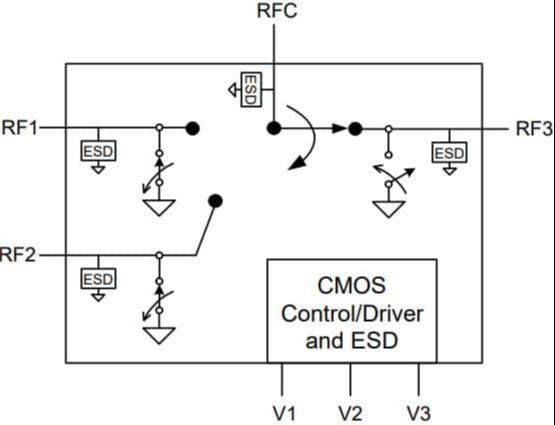

    The PE42430 is a HaRP™-enhanced reflective SP3T RF switch developed on the UltraCMOS® process technology. This tiny general-purpose switch is ideal for WLAN and Bluetooth applications in the 2.4–2.5 GHz bands as well as general broadband switching applications. It is comprised of three RF ports and has low insertion loss and high isolation. An on-chip CMOS decode logic facilitates a three-pin CMOS control interface. Unlike competitive solutions, there is no need for blocking capacitors when using the PE42430.


        HaRP™-enhanced UltraCMOS® device
        Low insertion loss
        IIP3: Typical +66 dBm
        P0.1dB compression: Typical +30 dBm
        Excellent ESD tolerance of 4500V HBM and 250V MM on all ports
        No external VDD required. VDD is derived from switch control inputs
        Packaging: 8-lead 1.5 × 1.5 mm DFN
