PE42482 SP8T RF Switch

    SG$ 9.15 SG$ 9.15 9.149600000000001 SGD

    US$ 6.72

    This combination does not exist.

    Add to Cart

    SP8T, Absorptive, 50Ω RF Switch, w/o ext. Vss

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

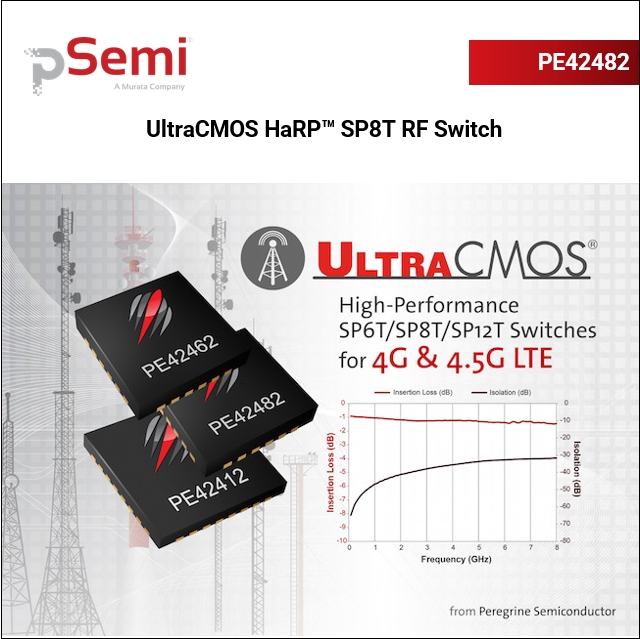

    The PE42482 is a HaRP™ technology-enhanced absorptive SP8T RF switch that supports a frequency range from 10 MHz to 8 GHz. It delivers high isolation, low insertion loss, and fast switching time, making this device ideal for filter bank switching and RF signal routing in wireless infrastructure and wireless applications up to 8 GHz. No blocking capacitors are required if DC voltage is not present on the RF ports


        High isolation: 41 dB @ 6 GHz
        Low insertion loss: 1.1 dB @ 6 GHz
        Fast switching time of 227 ns
        Power handling of 33 dBm CW
        Logic select (LS) pin provides maximum control logic flexibility
        Terminated all-off state mode
        Packaging: 24-lead 4 × 4 mm QFN
