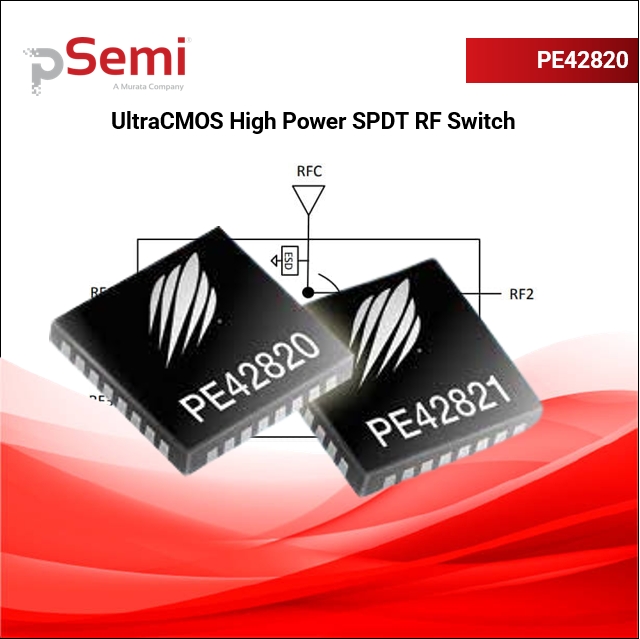

PE42820 UltraCMOS® High Power SPDT RF Switch

    SG$ 35.94 SG$ 35.94 35.944700000000005 SGD

    US$ 26.64

    This combination does not exist.

    Add to Cart

    SPDT, High power, Reflective, 50Ω RF Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

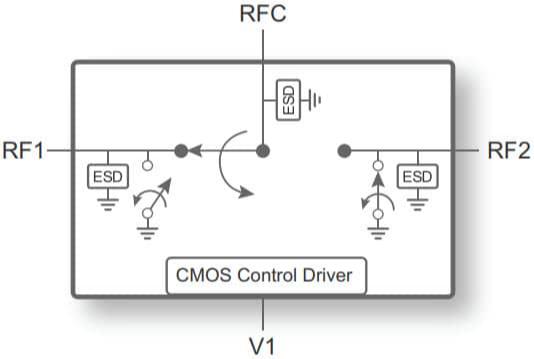

    The PE42820 is a HaRP™ technology-enhanced high power reflective SPDT RF switch designed for use in mobile radio, relay replacement, and other high-performance wireless applications. This switch is a pin-compatible upgraded version of the PE42510A with a wider frequency and power supply range, and an external negative supply option. It maintains exceptional linearity and power handling from 30 MHz through 2.7 GHz. PE42820 also features low insertion loss, high power handling, and is offered in a 32-lead 5 × 5 mm QFN package. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.


        High power handling
        Exceptional linearity
        Low insertion loss
        Wide supply range of 2.3–5.5V
        +1.8V control logic compatible
        ESD performance
        External negative supply option
        Packaging: 32-lead 5 × 5 mm QFN
