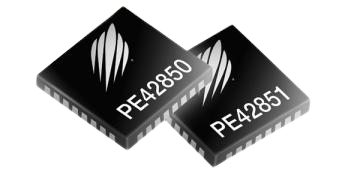

PE42850 High Power SP5T RF Switch

SG$ 27.57 SG$ 27.57 27.572400000000002 SGD

US$ 20.45

This combination does not exist.

Add to Cart

SP5T, High Power, Reflective, 50Ω RF Switch

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Psemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

FIND OUT MORE

Overview

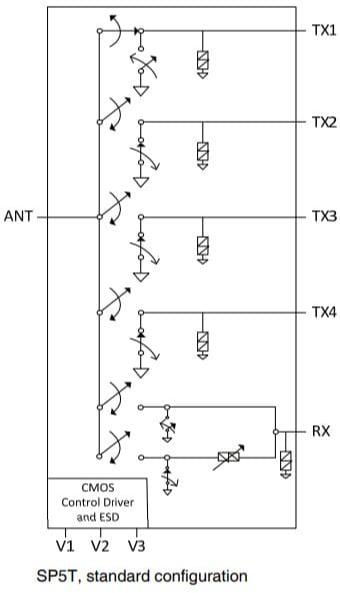

The PE42850 is a HaRP™ technology-enhanced SP5T high power RF switch supporting wireless applications up to 1 GHz. It offers maximum power handling of 42.5 dBm continuous wave (CW). It delivers high linearity and excellent harmonics performance. It has both a standard and attenuation RX mode. No blocking capacitors are required if DC voltage is not present on the RF ports.

Features

Dual-mode operation: SP5T or SP3T

HaRP™ technology-enhanced

Up to 45 dBm instantaneous power in 50 Ω

Up to 40 dBm instantaneous power < 8:1 VSWR

36 dB TX to RX isolation

Low harmonics of 2fo and 3fo = –90 dBc (1.15:1 VSWR)

ESD performance
