PE4312 Digital Step Attenuator

    SG$ 5.88 SG$ 5.88 5.8828000000000005 SGD

    US$ 4.36

    This combination does not exist.

    Add to Cart

    50Ω 6Bit 31.5dB 0.5dB Digital Step Attenuator

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.



    The PE4312 is a 50Ω, HaRP™ technology-enhanced 6-bit RF digital step attenuator (DSA) designed for use in 3G/4G wireless infrastructure and other high-performance RF applications.

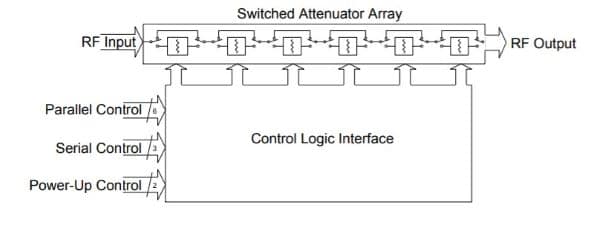

    This DSA is a pin-compatible upgraded version of the PE4302 with higher linearity, improved attenuation accuracy, and faster switching speed. An integrated digital control interface supports both serial and parallel programming of the attenuation, including the capability to program an initial attenuation state at power-up.

    Covering a 31.5 dB attenuation range in 0.5 dB steps, it maintains high linearity and low power consumption from 1 MHz through 4 GHz. PE4312 also features an external negative supply option and is offered in a 20-lead 4 × 4 mm QFN package. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.


        Attenuation: 0.5 dB steps to 31.5 dB
        Safe attenuation state transitions
        Monotonicity: 0.5 dB up to 4 GHz
        High attenuation accuracy
        High linearity: +59 dBm IIP3
        Wide power supply range of 2.3–5.5V
        1.8V control logic-compatible
        105°C operating temperature
        Programming modes: Direct parallel, latched parallel and serial
        Unique power-up state selection
        Pin-compatible to PE4302, PE4305, and PE4306
        Package—20-lead 4×4 mm QFN
