  2. PE43508 UltraCMOS RF Digital Step Attenuator
SGD Pricelist

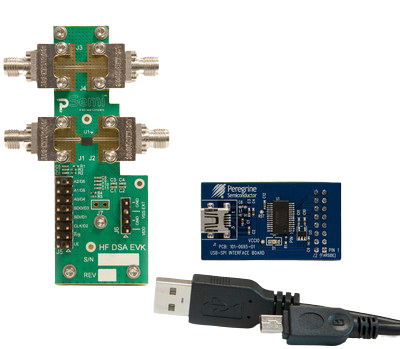

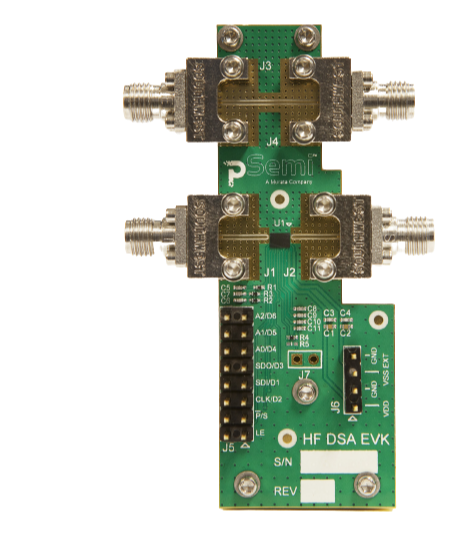

PE43508 UltraCMOS RF Digital Step Attenuator

    SG$ 112.45 SG$ 112.45 112.447 SGD

    US$ 83.40

    This combination does not exist.

    Add to Cart

    50Ω 6 Bit 31.5dB 0.5dB, 1.0dB Digital Step Attenuator, optional ext. Vss

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

    The PE43508 is a 50Ω, HaRP™ technology-enhanced, 6-bit RF digital step attenuator (DSA) that supports a wide frequency range from 9k to 55 GHz. The PE43508 features glitch-safe attenuation state transitions, supports 1.8V control voltage and optional VSS_EXT bypass mode to improve spurious performance, making this device ideal for test and measurement, point-to-point communication systems, and very small aperture terminals (VSAT).

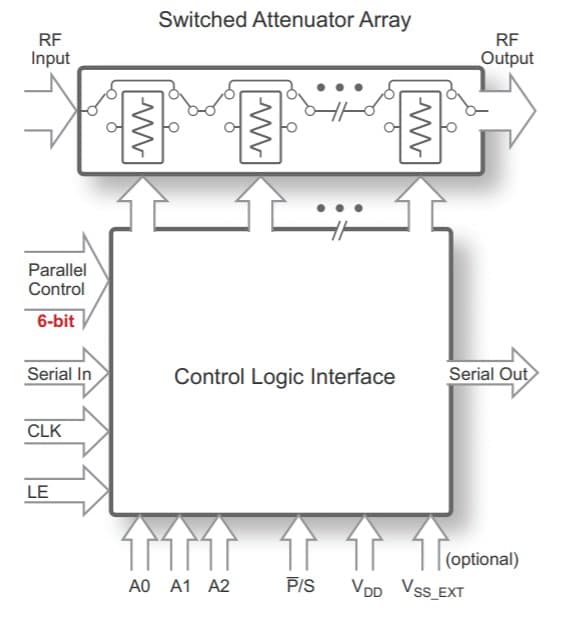

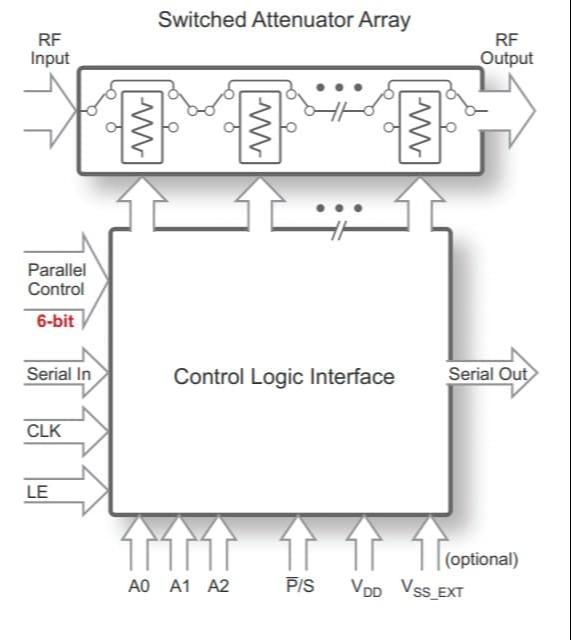

    The PE43508 provides an integrated digital control interface that supports both serial addressable and parallel programming of the attenuation. The PE43508 covers a 31.5 dB attenuation range in 0.5 dB and 1 dB steps. It is capable of maintaining 0.5 dB and 1 dB monotonicity through 55 GHz. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.

    Features

        Wideband support up to 55 GHz
        Glitch-safe attenuation state transitions
        Flexible attenuation steps of 0.5 dB and 1 dB up to 31.5 dB
        Extended +105°C operating temperature
        Parallel and serial programming interfaces with serial addressability
        Flip-chip die
