Overview

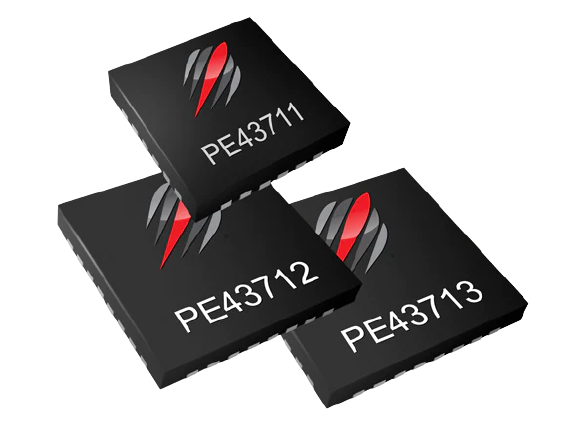

The PE43713 is a 50Ω, HaRP™ technology-enhanced, 7-bit RF digital step attenuator (DSA) that supports a broad frequency range from 9 kHz to 6 GHz. It features glitch-less attenuation state transitions, supports 1.8V control voltage, and includes an extended operating temperature range to +105°C and optional VSS_EXT bypass mode to improve spurious performance, making this device ideal for test and measurement (T&M).

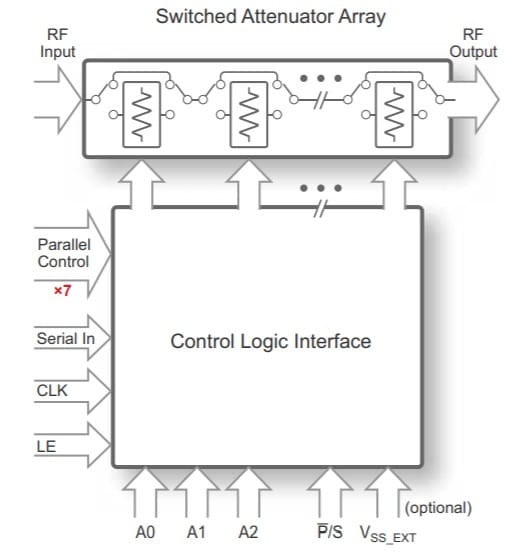

The PE43713 is a pin-compatible upgraded version of the PE43703. An integrated digital control interface supports both serial addressable and parallel programming of the attenuation, including the capability to program an initial attenuation state at power-up.

The PE43713 covers a 31.75 dB attenuation range in 0.25 dB, 0.5 dB and 1 dB steps. It is capable of maintaining 0.25 dB monotonicity through 4 GHz, 0.50 monotonicity through 5 GHz, and 1 dB monotonicity through 6 GHz. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports

Features

Flexible attenuation steps of 0.25 dB, 0.5 dB and 1 dB up to 31.75 dB
Glitch-less attenuation state transitions
Monotonicity: 0.25 dB up to 4 GHz, 0.5 dB up to 5 GHz and 1 dB up to 6 GHz
Extended +105°C operating temperature
Parallel and serial programming interfaces with serial addressability
Packaging—32-lead 5 × 5 mm QFN
