PE44820 RF Digital Phase Shifter 8-bit, 1.7–2.2 GHz

    SG$ 14.50 SG$ 14.50 14.4982 SGD

    US$ 10.73

    This combination does not exist.

    Add to Cart

    8-bit 1.7-2.2 GHz RF Digital Phase Shifter

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

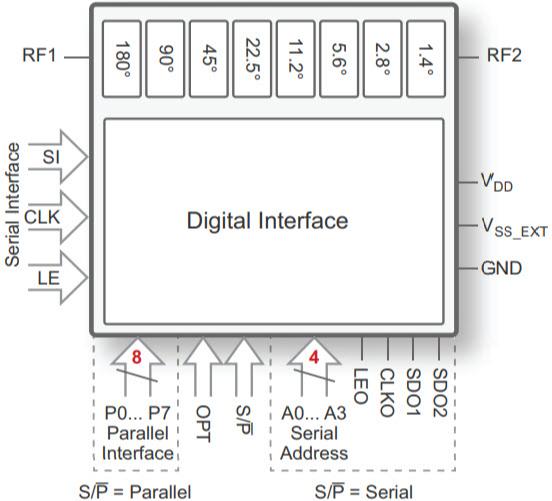

    The PE44820 is a HaRP™ technology-enhanced 8-bit digital phase shifter (DPS) designed for use in a phased array and active antenna applications. This DPS covers a phase range of 358.6° in 1.4° steps, maintaining excellent phase and amplitude accuracy across the nominal frequency band of 1.7–2.2 GHz. The PE44820 is also capable of extended frequency operation from 1.1–3.0 GHz for narrowband applications, as detailed in Application Note 45. An integrated digital control interface supports both serial and parallel programming of the phase setting. The PE44820 also features an external negative supply option for a faster switch frequency and is offered in a 32-lead 5 × 5 × 0.85 mm QFN package. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.


        8-bit full-range phase shifter of 358.6°, 180°, 90°, 45°, 22.5°, 11.2°, 5.6°, 2.8° and 1.4° bits
        Low RMS phase and amplitude error
        High linearity of +60 dBm IIP3
        Extended narrow band frequency operation of 1.1–3.0 GHz
        +105°C operating temperature
        Packaging: 32-lead 5 × 5 × 0.85 mm QFN
