PE46130 MPAC–Doherty (2.3–2.7 GHz)

    SG$ 27.39 SG$ 27.39 27.3942 SGD

    US$ 20.12

    This combination does not exist.

    Add to Cart

    Monolithic Phase and Amplitude Controller 2.3-2.7 GHz

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.



    The PE46130 is a HaRP™ technology-enhanced monolithic phase and amplitude controller (MPAC)–Doherty device designed for precise phase and amplitude control of two independent RF paths. It optimizes system performance while reducing manufacturing costs of transmitters that use symmetric or asymmetric power amplifier designs to efficiently process signals with large peak-to-average ratios.

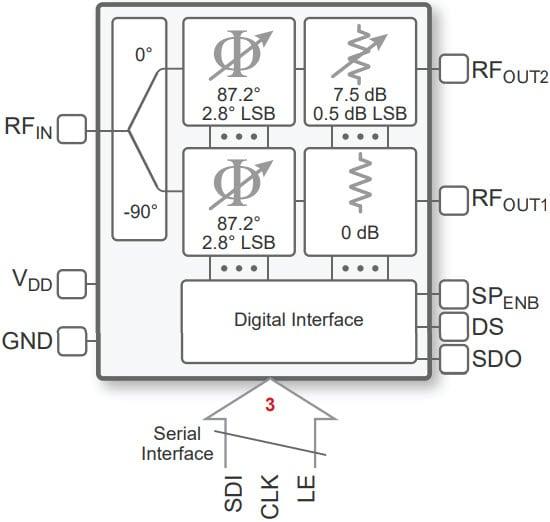

    This monolithic RFIC integrates a 90° RF splitter, digital phase shifters, and a digital step attenuator along with a low voltage CMOS serial interface. It can cover a phase range of 87.2° in 2.8° steps and an attenuation range of 7.5 dB in 0.5 dB steps, while providing excellent phase and amplitude accuracy from 2.3–2.7 GHz.

    The PE46130 also features exceptional linearity, high output port-to-port isolation and extremely low power consumption relative to competing module solutions


        90° phase splitter
        4-bit digital step attenuator, 7.5 dB range, 0.5 dB resolution
        5-bit digital phase shifter, 87.2° range, 2.8° resolution
        High power handling and linearity
        3-bit insertion loss stabilizer (ILS)
        Packaging: 32-lead 6 × 6 mm QFN
