PE613050 SP4T Antenna Tuning Control Switch

    SG$ 4.40 SG$ 4.40 4.3986 SGD

    US$ 3.26

    This combination does not exist.

    Add to Cart

    SP4T, Open Reflective, Tuning Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

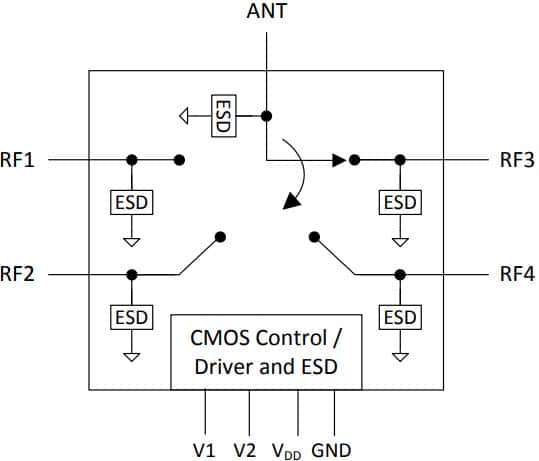

    The PE613050 is an SP4T tuning control switch based on our UltraCMOS® technology. This highly versatile switch supports a wide variety of tuning circuit topologies with an emphasis on impedance matching and aperture tuning applications. PE613050 features low on-resistance and insertion loss from 5 to 3000 MHz. With two-pin low voltage CMOS control, all decoding and biasing are integrated on-chip and no external bypassing or filtering components are required.


        Open reflective architecture
        Very low on-resistance of 1.6Ω
        Low insertion loss
        High power handling
        Wide power supply range (2.3V to 5.5V)
        High ESD tolerance of 2 kV HBM on all pins
        Packaging: 12-lead 2 × 2 × 0.5 mm QFN
