R311A-Wireless Door/Window Sensor

  • Sensor
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • TX Power
  • Chipset
  • Cable length

SG$ 140.76 SG$ 140.76 140.7589 SGD

US$ 105.00

This combination does not exist.

Add to Cart

The R311CA device has a built-in reed switch sensor, and can be connected to a certain number of reed switches through external expansion. It can be used for door and window switch status detection.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

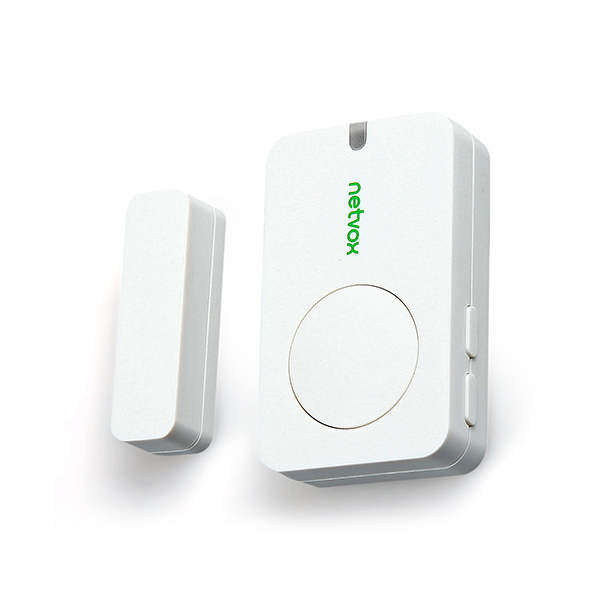

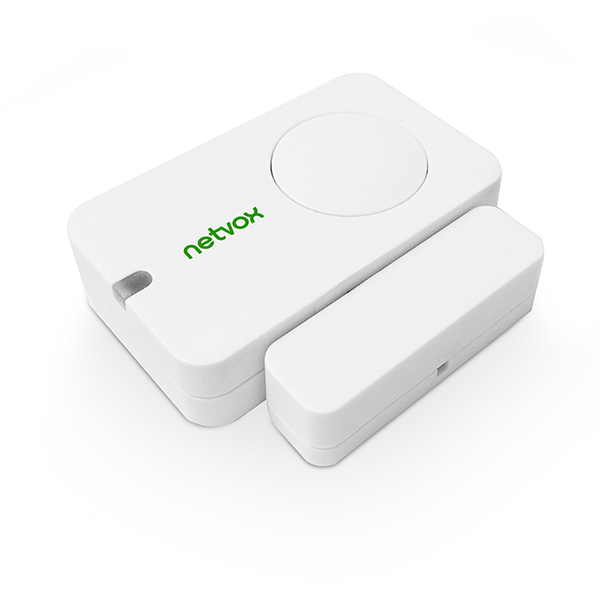

The R311CA device has a built-in reed switch sensor, and can be connected to a certain number of reed switches through external expansion. It can be used for door and window switch status detection. It can realize wireless alarm and other functions through built-in wireless module, and is compatible with LoRaWAN Protocol. It can be easily networked with other related devices. The R311CA is durable and ensures optimum use and is a low power consumption device. Due to their small size, they can be installed anywhere, they are wireless, so they take up very little space.


    Features

    • LoRaWAN™ Class A compatible

    • 2*3.0V CR2450 button battery power supply

    • Reed sensor detection

    • Apply SX1276 wireless communication module

    • Frequency Hopping Spread Spectrum (FHSS)

    • Configuration parameters can be configured through a third-party software platform

    • Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne

    • Low power consumption and long battery life Improved

              Specifications for R311A-Wireless Door/Window Sensor

              Frequency band AS923 or AU915 or CN470 or KR920 or US915
              Sensor Magnetic
              Waterproof IP30
              Class Class A
              Power type 2 x CR2450
              Sleep Power consumption 22uA
              Rx Sensitivity -136dBm
              TX Power 16dBm
              Chipset SX1276
              Cable length NA
