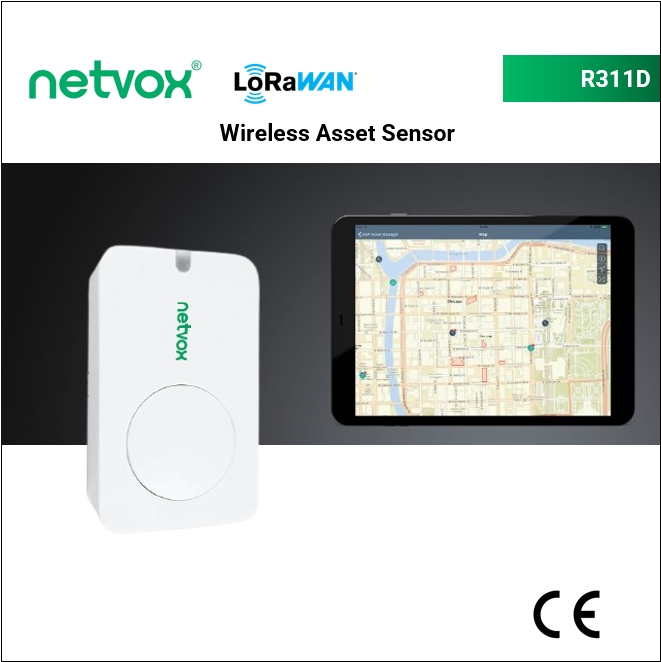

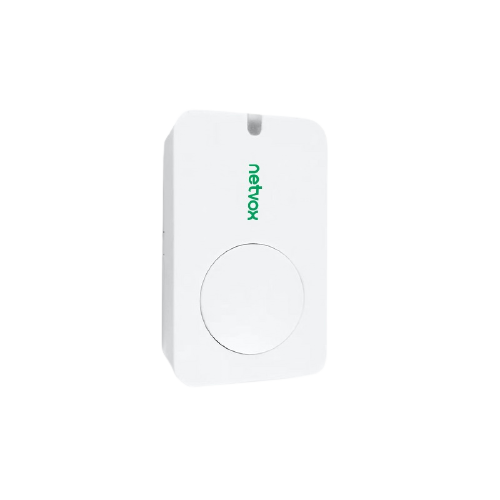

R311D Wireless Asset Sensor

Waterproof
Class
Frequency band
Power type
Sleep Power consumption
Rx Sensitivity
Transmit Power
Chipset
Sensors

SG$ 112.02 SG$ 112.02 112.0164 SGD

US$ 86.00

This combination does not exist.

The device is a simple positioning function (which can detect the position status of the device), periodically reports RSSI and SNR information to the gateway for processing and can locate the position status of the device according to the reported RSSI and SNR information, and adopts SX1276 wireless communication module.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard. Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life. For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.

FIND OUT MORE

Overview

Features

LoRaWAN™ Class A compatible
2*3.0V CR2450 button battery power supply
RSSI / SNR detection
Apply SX1276 wireless communication module
Frequency Hopping Spread Spectrum (FHSS)
Configuration parameters can be configured through a third-party software platform
Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
Low power consumption and long battery life Improved

Specifications for R311D Wireless Asset Sensor

Frequency band	AS923 or AU915 or KR920 or US915
Waterproof	IP30
Class	Class A
Power type	2 pcs 3.0V CR2450 button batteries
Sleep Power consumption	12uA
Rx Sensitivity	-136dBm
Transmit Power	16dBm
Chipset	SX1276
Sensors	RSSI
