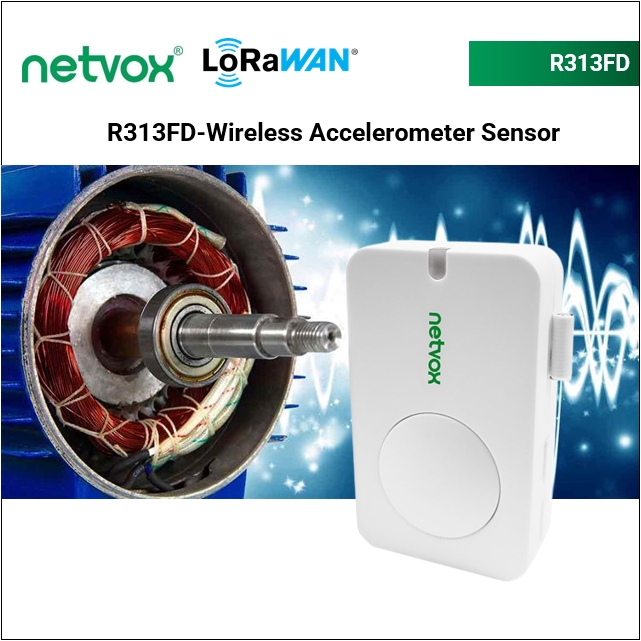

R313FD-Wireless 3-axis Accelerometer Sensor

  • Configuration Interface
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Transmit Power
  • Chipset
  • Sensors

SG$ 130.25 SG$ 130.25 130.2517 SGD

US$ 100.00

This combination does not exist.

Add to Cart

When the device moves or shakes beyond the set threshold, it immediately reports the current acceleration and velocity of the X, Y, and Z axes.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

When the device moves or shakes beyond the set threshold, it immediately reports the current acceleration and velocity of the X, Y, and Z axes.

    Features

    • Adopt SX1276 wireless communication module
    • 2 x 3.0V CR2450 button batteries
    • 3-axis Acceleration and Velocity Detection
    • Compatible with LoRaWAN™ Class A
    • Frequency Hopping Spread Spectrum (FHSS)
    • Configuration parameters can be configured through a third-party software platform
    • Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
    • Low power consumption and long battery life Improved

              Specifications for R313FD-Wireless 3-axis Accelerometer Sensor

              LoRaWAN
              Configuration Interface UART
              Uncategorized
              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class A
              Power type 2 pcs 3.0V CR2450 button batteries
              Sleep Power consumption 12uA
              Rx Sensitivity -136dBm
              Transmit Power 16dBm
              Chipset SX1276
              Sensors Accelarometer
              This is a preview of the recently viewed products by the user.
              Once the user has seen at least one product this snippet will be visible.

              Recently viewed Products

              Suggested alternatives:
              [R311FA-AS923] R311FA Wireless Activity Detection Sensor (AS923)
              R311FA Wireless Activity Detection Sensor
              [R311FB-AS923] R311FB Wireless Activity Event (AS923)
              R311FB Wireless Activity Event
              [R311FC-AS923] R311FC Wireless Activity Timer (AS923)
              R311FC Wireless Activity Timer
              [R311LA-AS923] R311LA Wireless Infrared Proximity Sensor (AS923)
              R311LA Wireless Infrared Proximity Sensor
              R311W -Wireless 2-Gang Water Leak Detector (AS923)
              R311W -Wireless 2-Gang Water Leak Detector

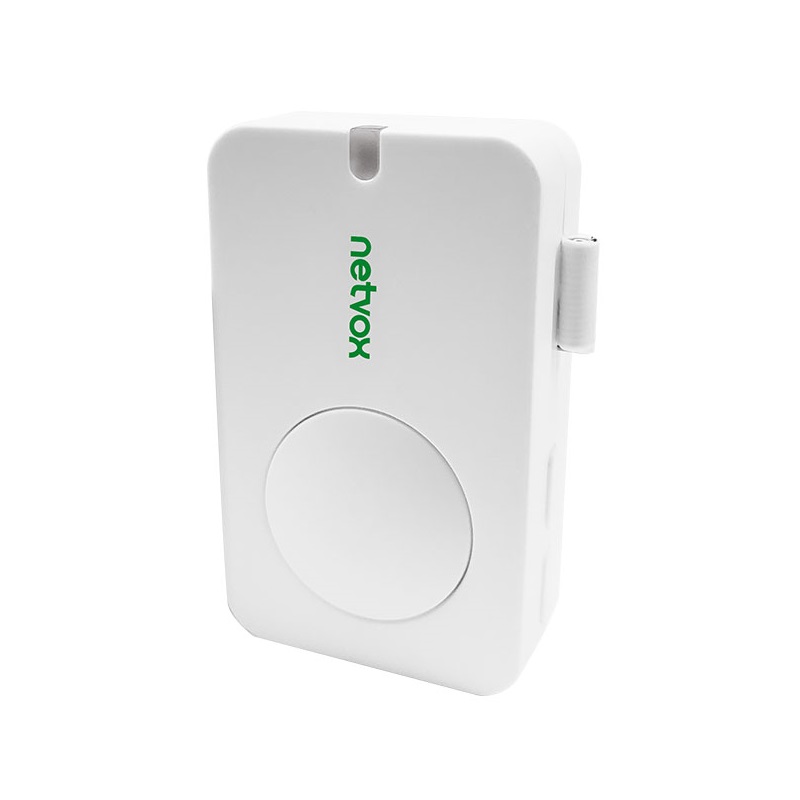

              R313FB - Wireless Activity Event Counter (AS923)
