R718B Wireless Temperature Sensor - PT1000

R718B Wireless Temperature Sensor - PT1000

Waterproof
Class
Frequency band
Power type
Sleep Power consumption
Rx Sensitivity
Sensor Measurement Range
TX Power
Chipset
Certification
Sensors

SG$ 325.39 SG$ 325.39 325.392 SGD

US$ 240.00

This combination does not exist.

Add to Cart

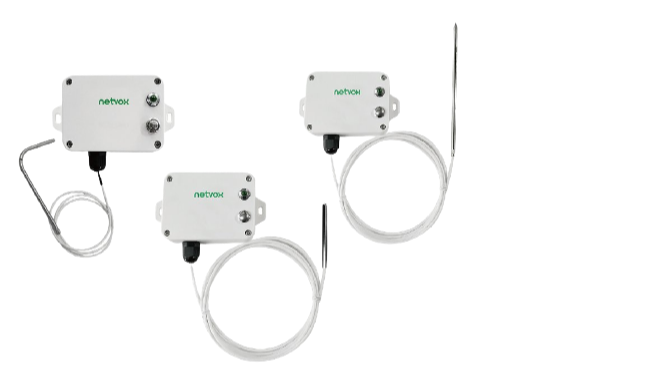

R718B connects an external resistance temperature detector (PT1000) to measures the temperature.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard. Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life. For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.

FIND OUT MORE

Overview

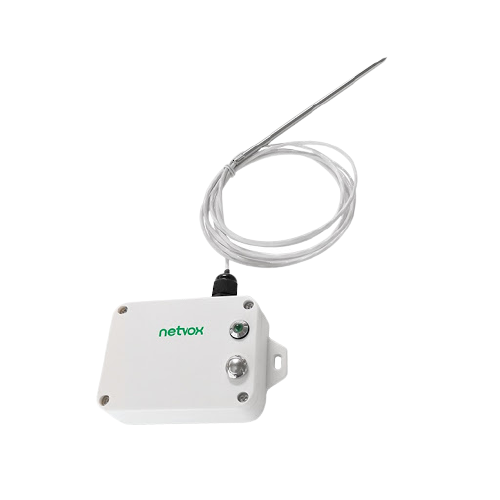

The Netvox R718B LoRaWAN Sensor is used to detect the temperature of medium and objects. R718B carries the PT100 platinum thermal resistor. It uses the SX1276 LoRWAN wireless communication module.

Features

LoRaWAN™ Class A compatible
Frequency Hopping Spread Spectrum (FHSS)
Improved Interference Immunity
Improved Power Management For Longer Battery Life
Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
Battery Life: Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
Over-The-Air Updates
Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

Specifications for R718B Wireless Temperature Sensor - PT1000

Frequency band	AS923 or AU915 or EU868 or US915
Sensors	Temperature or 2 x Temperature
Waterproof	IP67
Class	Class A
Power type	2 X 3.6V ER14505 AA
Sleep Power consumption	23uA
Rx Sensitivity	-136dBm
Sensor Measurement Range	-40 ℃ to 200℃
TX Power	16dBm
Chipset	SX1276
Certification	TELEC
