R718PB15 Wireless Soil Moisture/Temperature/Electrica/Conductivity sensor

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Sensors

SG$ 416.81 SG$ 416.81 416.80530000000005 SGD

US$ 320.00

This combination does not exist.

Add to Cart

The device is a wireless communication device that detects soil temperature and moisture content and soil conductivity, and transmits the detected data to other devices through a wireless network. The SX1276 wireless communication method is adopted .

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

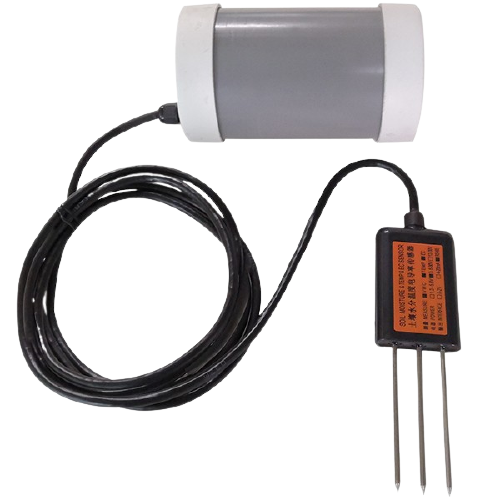

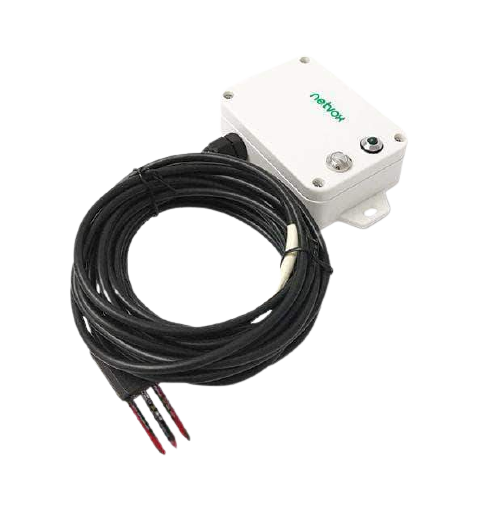

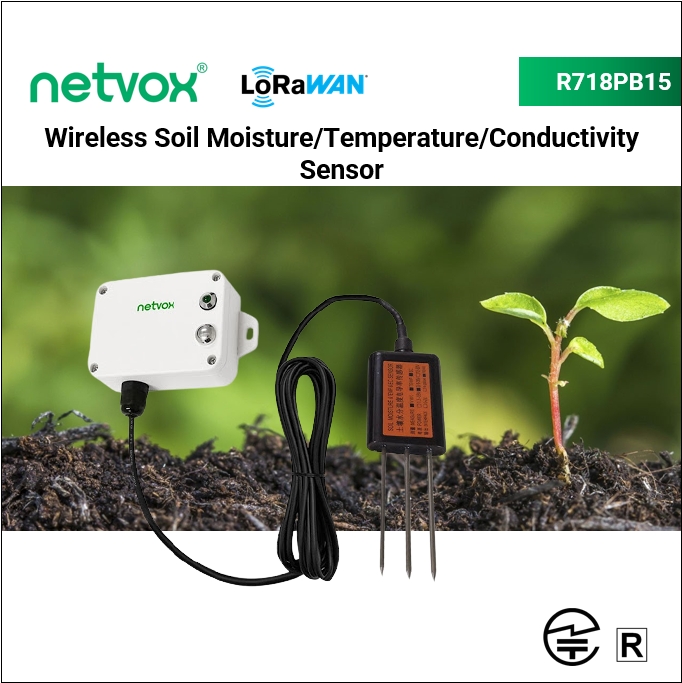

The R718PB15 device is a wireless communication device that detects soil temperature and moisture content and soil conductivity, and transmits the detected data to other devices through a wireless network. The SX1276 wireless communication method is adopted.



    Features

    • Wireless Range of 10 Km
    • LoRaWAN™ Class A Compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved Interference Immunity
    • Improved Power Management For Longer Battery Life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
    • Battery Life*2:
      ⁻ 5 Years

       (Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)

    • Over-The-Air Updates

    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)

    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne

              Specifications for R718PB15 Wireless Soil Moisture/Temperature/Electrica/Conductivity sensor

              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class A
              Power type 2pcs Of 3.6V ER14505 AA
              Sleep Power consumption 20uA
              Rx Sensitivity -136dBm
              Sensor Measurement Range 0.0008 m3 /m3 from 0%–50% VWC
              TX Power 16dBm
              Chipset SX1276
              Sensors Soil Moisture/Temperature/Electrica/Conductivity sensor
